V7

● Rugged enclosure design with I rating
● Rockchip PX3 Quad-core ARM Cortex-A9, 1.6 GHz
● Android 7.1 operating system
● Integrated 2D/3D Mali-400MP4 GPU, up to 600 MHz
● Built-in 0.3 MP CMOS front camera, built-in stereo speakers(2W,8Ω)x2
● Built-in 4G/3G cellular, WiFi, Bluetooth, GPS+GLONASS+BEIDOU (optional)
● Built-in and Extended I/O interfaces USB Type A, TF(up to 128 GB), RJ45, 2x RS232, OTG

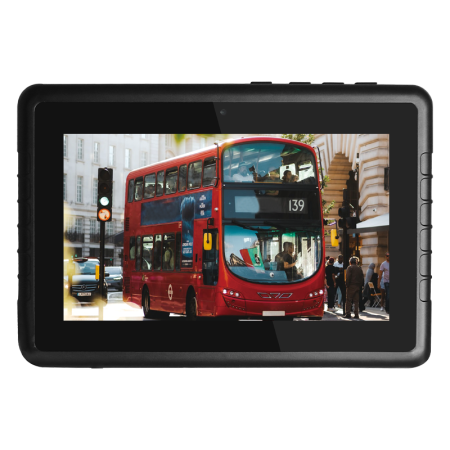

The V7 Mobile Data Terminal by Saintway is a technological revolution in the vehicle industry. It features an Android-based 7-inch display and is powered by a Rockchip PX3 Quad-core ARM Cortex-A9 processor. The newly designed enclosure has an IP65 ingress protection rating and includes a sunshade hood for outdoor use. V7 integrates various communication modules such as Wi-Fi, Bluetooth, 4G/3G cellular, and GPS. It also offers multiple I/O ports, including USB-TypeA, RS232, RJ45, USB, and OTG, to accommodate various peripheral devices.

Ultra-Durable LCD Protection

V7 has a 7-inch LCD screen with a capacitive multi-touch panel. That means no stress over the scratch, drop, or impact, with super-strong insurance construction. While the remainder of your gadget is effectively and completely secured by a strong metal, elastic, and plastic fenced-in area.

Enhance Fleet Efficiency

Saintway in-vehicle tablets present the solution basement to streamline the workflow, either fleet and logistics tracking, vehicle dispatching, regular maintenance, or possible immediate response to faults and failures.

Multiple Connections for External Equipment

V7 also provides multiple connections for external equipment. It can be extended with USB, OTG, RS232 Ethernet, etc. Through the extension of MDT with other peripherals, a user can feel a more enjoyable experience.

Rugged Design

Water & dustproof design can meet the in-cab harshest environment. No matter in the hottest Middle East, or the coldest North Europe, V7 can still work smoothly to help drivers.

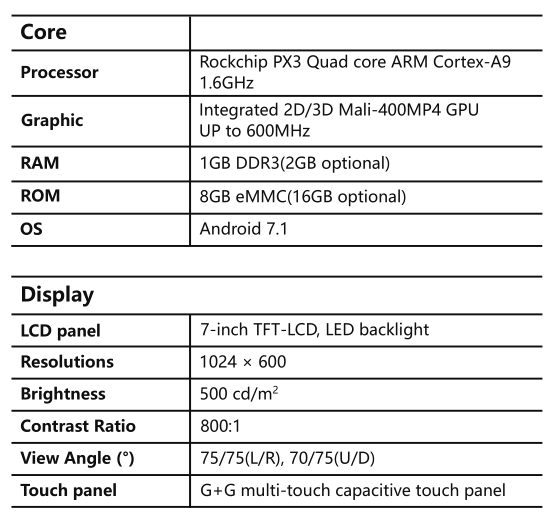

Specifications

ModelV7
CoreProcessorRockchip PX3 Quad core ARM Cortex-A9 1.6GHz
GraphicIntegrated 2D/3D Mali-400MP4 GPU UP to 600MHz
RAM1GB DDR3(2GB optional)
ROM8GB eMMC(16GB optional)
OSAndroid 7.1
DisplayLCD panel7-inch TFT-LCD, LED backlight
Resolutions1024 × 600
Brightness500 cd/m2
Contrast Ratio800:1
View Angle (°)75/75(L/R), 70/75(U/D)
Touch panelG+G multi-touch capacitive touch panel

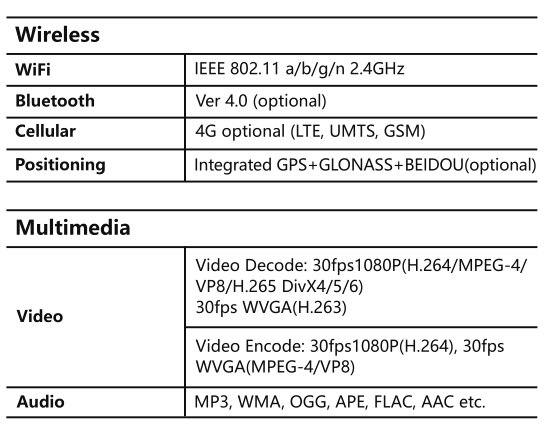

wirelessWiFiIEEE 802.11 a/b/g/n 2.4GHz
BluetoothVer 4.0 (optional)
Cellular4G optional (LTE, UMTS, GSM)
PositioningIntegrated GPS+GLONASS+BEIDOU(optional)
MultimediaVideoVideo Decode: 30fps1080P(H.264/MPEG-4/VP8/H.265 DivX4/5/6) 30fps WVGA(H.263)
Video Encode: 30fps1080P(H.264), 30fps WVGA(MPEG-4/VP8)
AudioMP3, WMA, OGG, APE, FLAC, AAC etc.
MechanicalDimensions200(L)x136(W)x36(H) mm
Weight0.79kg
Mount75x75mm VESA or 38x30mm RAM compliant
CertificationCE/E-mark/RCM compliant
AccessoriesStandardAC/DC adaptor or car power adaptor(optional)
Extended cable
OptionalSunshade

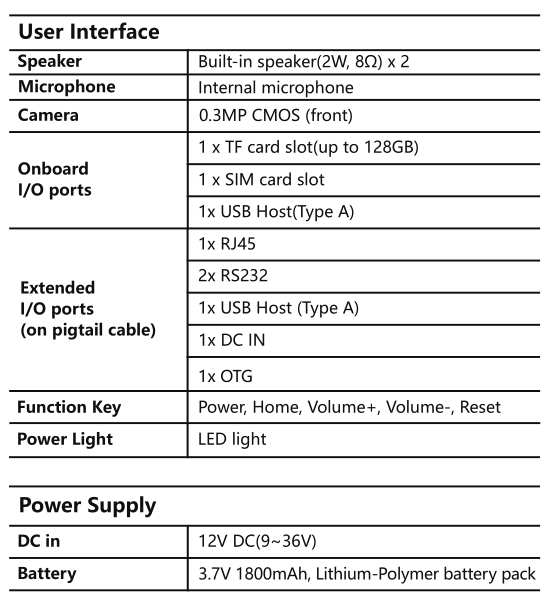

User InterfaceSpeakerBuilt-in speaker(2W, 8Ω) x 2
MicrophoneInternal microphone
Camera0.3MP CMOS (front)
Onboard
I/O ports
1 x TF cardslot(up to 128GB)
1 x SIM cardslot
1x USB Host(Type A)
Extended
I/O ports
(on pigtail cable)
1x RJ45
2x RS232
1x USB Host (Type A)
1x DC IN
1x OTG
Function KeyPower, Home, Volume+, Volume-, Reset
Power LightLED light
Power SupplyDC In12V DC (9~36V)
Battery3.7V 1800mAh, Lithium-Polymer battery pack

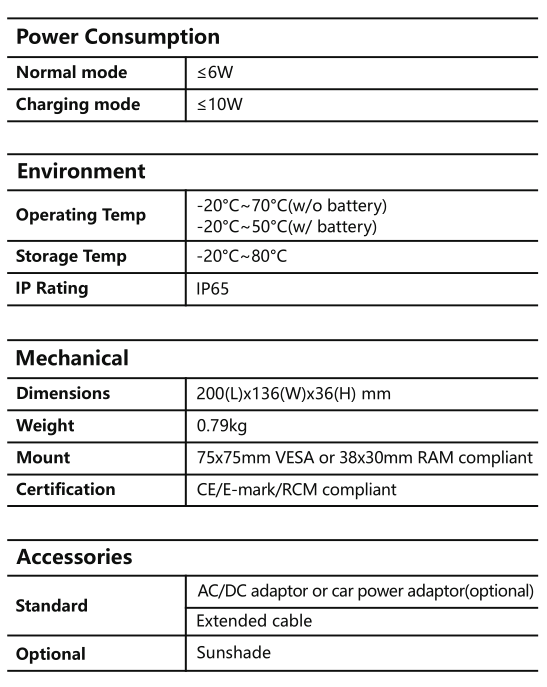

Power ConsumptionNormal mode≤6W
Charging mode≤10W
EnvironmentOperating Temp-20°C~70°C (w/o battery)
-10°C~50°C (w/ battery)
Storage Temp-20°C~80°C
IP RatingIP65
