Q77

● Rugged enclosure design with IP65 rating
● Qualcomm Octa-core ARM Cortex-A53 processor 1.8GHz
● Android 9.0 operating system
● Integrated Adreno 506 GPU, up to 600MHz
● Built-in 3.7V 5000 mAH Poly-lion battery
● Built-in 2.0MP CMOS front camera, 5.0MP CMOS back camera
● Built-in 4G/3G cellular, GPS+GLONASS+BEIDOU, NFC etc
● Built-in and Extended I/O interfaces USB-Type C, TF(up to 128 GB), POGO PIN, 4xGPIO, OBD|| ,RS232, RS422, RS485, J1939

Q77 is the latest Saintway’s offering which is specially designed to keep in view the latest market trends. It is an all-in-one rugged detachable, portable, and high-performance vehicle-mounted Mobile Data Terminal that provides an outstanding user experience. Q77 is the 7-inch special, smart, and intelligent mobile data terminal with a bright and daylight viewable TFT-LCD, LED backlight. Moreover, it is equipped with Android 9 OS, a lithium-polymer-based high-capacity battery, and an Octa-core ARM processor which results in high-performance prolonged battery backup and low power consumption. In addition to this, various features such as different wireless communication modules, make it the best choice. Taking all these factors into consideration, it can be a perfect companion for a mobile workforce in transportation and logistics.

Compact Design, Easy for Portable Use

The compact design of Q77 makes it aesthetically attractive and easy for portable use. The portability of a device will help your workers to work smarter. 3GB LPDDR3 RAM (2GB optional), 32GB eMMC ROM (16GB optional),Octa core ARM Cortex-A53 processor, Integrated Adreno Graphic Card,
Extendable Storage, Docking Station, USB Type-C, RS232, RS422. These are the front-end specifications that make Q77 the best MDT choice.

Support Multi-Functional Modules Customization

High-performance processors and multiple interfaces and modules extend device capabilities. Customers’ software compatible, extended hardware(cameras, sensors, headphones, taxi meters, etc.) supported and easy mounting ensured.

ELD Made Easy

With SAE J1939/OBD-II interfaces, recording data is automatically compliant with multiple HOS rules (FMCSA) including Property/Passenger 60-hour/7 days & 70-hour/8-day.

Multiple Interface

The interface of the equipment is varied and the functions are rich and varied.

Specifications

ModelQ77

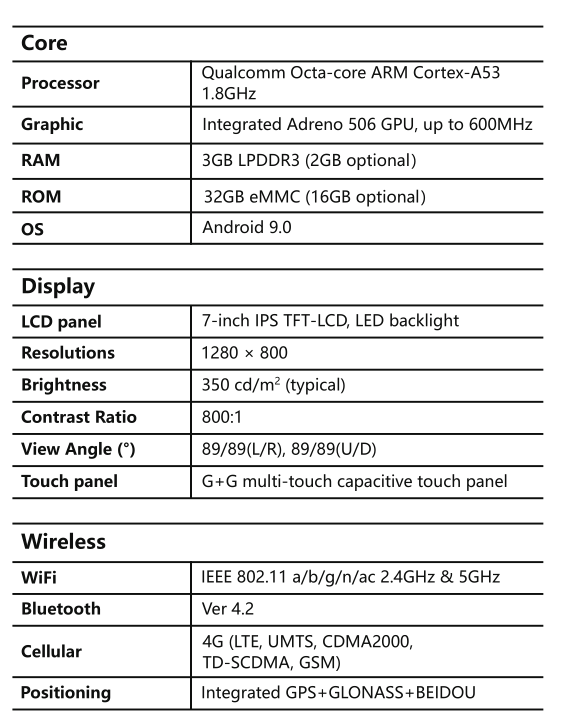

CoreProcessorQualcomm Octa-core ARM Cortex-A53 1.8GHz
GraphicIntegrated Adreno 506 GPU, up to 600MHz
RAM3GB LPDDR3 (2GB optional)
ROM32GB eMMC (16GB optional)
OSAndroid 9.0
DisplayLCD panel7-inch IPS TFT-LCD, LED backlight
Resolutions1280 × 800
Brightness350 cd/m2  (typical)
Contrast Ratio800:1
View Angle (°)89/89(L/R), 89/89(U/D)
Touch panelG+G multi-touch capacitive touch panel
wirelessWiFiIEEE 802.11 a/b/g/n/ac 2.4GHz & 5GHz
BluetoothVer 4.2
Cellular4G (LTE, UMTS, CDMA2000, TD-SCDMA, GSM)
PositioningIntegrated GPS+GLONASS+BEIDOU

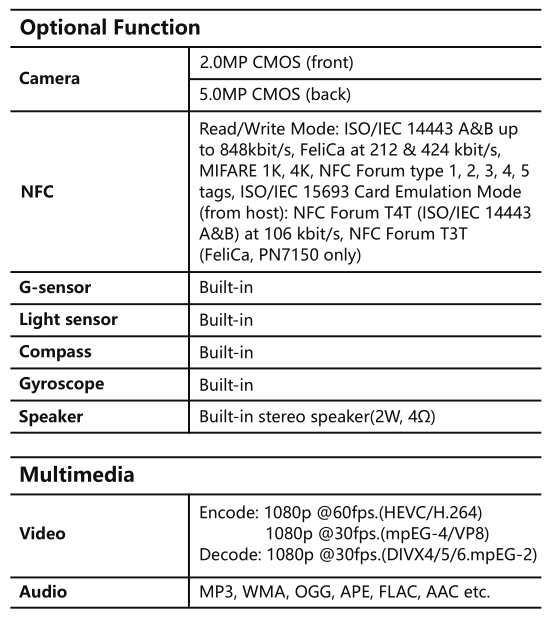

Optional FunctionCamera2.0MP CMOS (front)
5.0MP CMOS (back)
NFCRead/Write Mode: ISO/IEC 14443 A&B up to 848kbit/s, FeliCa at 212 & 424 kbit/s, MIFARE 1K, 4K, NFC Forum type 1, 2, 3, 4, 5 tags, ISO/IEC 15693 Card Emulation Mode (from host): NFC Forum T4T (ISO/IEC 14443 A&B) at 106 kbit/s, NFC Forum T3T (FeliCa, PN7150 only)
G-sensorBuilt in
Light sensorBuilt in
CompassBuilt in
GyroscopeBuilt in
SpeakerBuilt-in stereo speaker(2W, 4Ω)
MultimediaVideoEncode: 1080p @60fps.(HEVC/H.264)
             1080p @30fps.(mpEG-4/VP8)
Decode: 1080p @30fps.(DIVX4/5/6.mpEG-2)
AudioMP3, WMA, OGG, APE, FLAC, AAC etc.

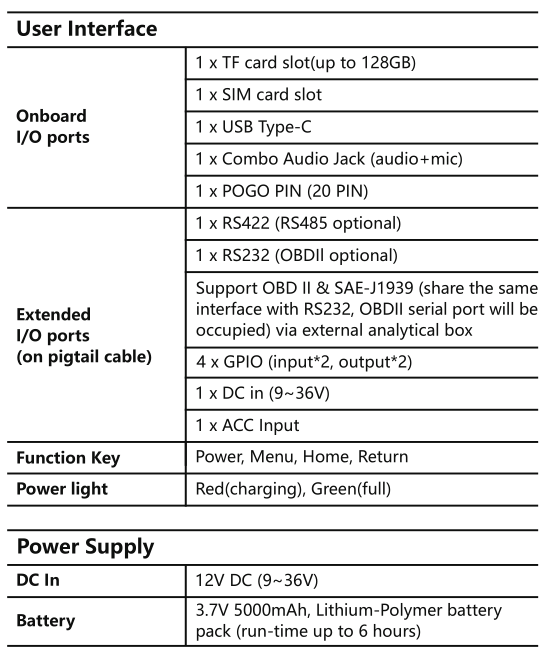

User InterfaceOnboard
I/O ports
1 x TF cardslot(up to 128GB)
1 x SIM cardslot
1 x USB Type-C
1 x Combo Audio Jack (audio+mic)
1 x POGO PIN (20 PIN)
Extended
I/O ports
(on pigtail cable)
1 x RS422 (RS485 optional)
1 x RS232 (OBD-Il optional)
Support OBD-II & SAE-J1939 (Share the same interface with RS232, OBD-II serial port will be occupied) via external analytical box
4 x GPIO (input*2, output*2)
1 x DC in (9~36V)
1 x ACC Input
Function KeyPower, Menu, Home, Return
Power IndicatorRed(charging), Green(full)
Power SupplyDC In12V DC (9~36V)
Battery3.7V 5000mAh, Lithium-Polymer battery pack (run-time up to 6 hours)

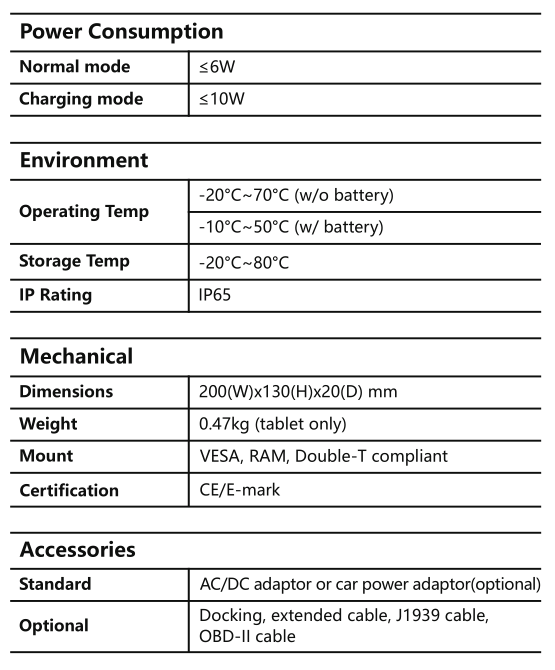

Power ConsumptionNormal mode≤6W
Charging mode≤10W
EnvironmentOperating Temp-20°C~70°C (w/o battery)
-10°C~50°C (w/ battery)
Storage Temp-20°C~80°C
IP RatingIP65
MechanicalDimensions200(W)x130(H)x20(D) mm
Weight0.47kg (tablet only)
MountVESA, RAM, Double-T compliant
CertificationCE/E-mark
AccessoriesStandardAC/DC adaptor or car power adaptor(optional)
OptionalDocking, extended cable, J1939 cable, OBD-II cable
