● Rugged enclosure design with IP65 rating.
● Rockchip RK3288 Quad-core ARM cortex-A17 processor, 1.8GHz.
● Android 7.1 Nougat operating system.
● Integrated 2D/3D Mali-T764 GPU, up to 600MHz.
● 8-inch 1024×600 LCD with multi-touch capacitive touchscreen.
● Built-in 3.7V 3600mAH Poly-lion battery.
● Built-in 4G cellular, RJ45 Ethernet LAN (Gigabits optional), NFC.
● Extended Cable I/O RS422(RS485 optional), RS232, USB (2 X RS232 optional)

S8 is an IP65 grade 8-inch rugged Android tablet that is designed to withstand rough handling, like outdoor or in-vehicle harshest environment use. As for its CPU and OS, the S8 is powered by Rockchip RK3288W ARM Cortex-A17 quad-core with Android 7.1 Nougat system or Linux (Ubuntu18.04). It also integrates optional modules like Gigabit Ethernet for data transmission and NFC for identification. Meanwhile, for in-vehicle use, it has functional interfaces such as RS232, RS422, USB host, etc. which are suitable for many applications such as fleet management, public transit, intelligent mining, precision farming, logistics and industrial control, etc.

Onboard I/O Support with Docking

S8 also provides multiple connections for external equipment. It can be extended with USB, OTG, RS232, RS422 (RS485 optional), and Docking extension (optional). Through the extension of MDT with other peripherals, more industrial application scenarios can be covered. S8 supports TF card (up to 128GB), has Combo Audio Jack, and also POGO PIN.

Support Multi-Functional Modules Customization

High-performance processors and multiple interfaces and modules extend device capabilities. Customers’ software compatible, extended hardware(cameras, sensors, headphones, taxi meters, etc.) supported and easy mounting ensured.

ELD Made Easy

With SAE J1939/OBD-II interfaces(optional), recording data is automatically compliant with multiple HOS rules (FMCSA) including Property/Passenger 60-hour/7 days & 70-hour/8-day.

All-round Ruggedness

TPU material corner drop protection provides all-around protection for the tablet. Compliance with IP65 rating dustproof and waterproof, and anti-vibration and shocks.

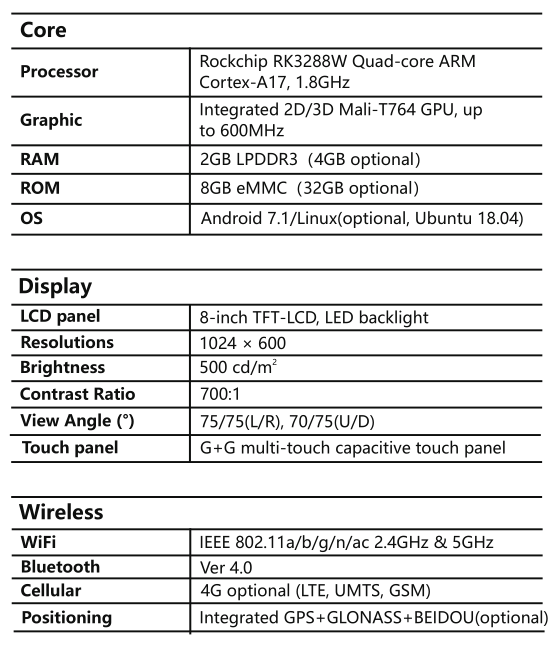

CoreProcessorRockchip RK3288W Quad-core ARM Cortex-A17, 1.8GHz
GraphicIntegrated 2D/3D Mali-T764 GPU, up to 600MHz
RAM2GB LPDDR3(4GB optional)
ROM8GB eMMC(32GB optional)
OSAndroid 7.1/Linux(optional, Ubuntu 18.04)
DisplayLCD panel8-inch TFT-LCD, LED backlight
Resolutions1024 × 600
Brightness500 cd/m2
Contrast Ratio700:1
View Angle (°)75/75(L/R), 70/75(U/D)
Touch panelG+G multi-touch capacitive touch panel
wirelessWiFiIEEE 802.11  a/b/g/n/ac 2.4GHz & 5GHz
BluetoothVer 4.0
Cellular4G optional (LTE, UMTS, GSM)
PositioningIntegrated GPS+GLONASS+BEIDOU(optional)

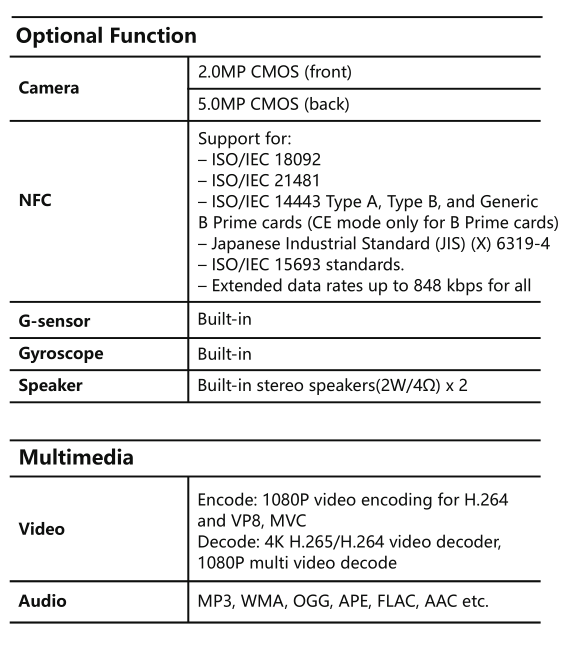

Optional FunctionCamera2.0MP CMOS (front)
5.0MP CMOS (back)
NFCSupport for:
 – ISO/IEC 18092
 – ISO/IEC 21481
 – ISO/IEC 14443 Type A, Type B, and Generic
B Prime cards (CE mode only for B Prime cards)
 – Japanese Industrial Standard (JIS) (X) 6319-4
 – ISO/IEC 15693 standards.
 – Extended data rates up to 848 kbps for all
G-sensorBuilt in
GyroscopeBuilt in
SpeakerBuilt-in stereo speakers(2W/4Ω) x 2
MultimediaVideoEncode: 1080P video encoding for H.264 and VP8, MVC
Decode: 4K H.265/H.264 video decoder, 1080P multi video decode
AudioMP3, WMA, OGG, APE, FLAC, AAC etc.

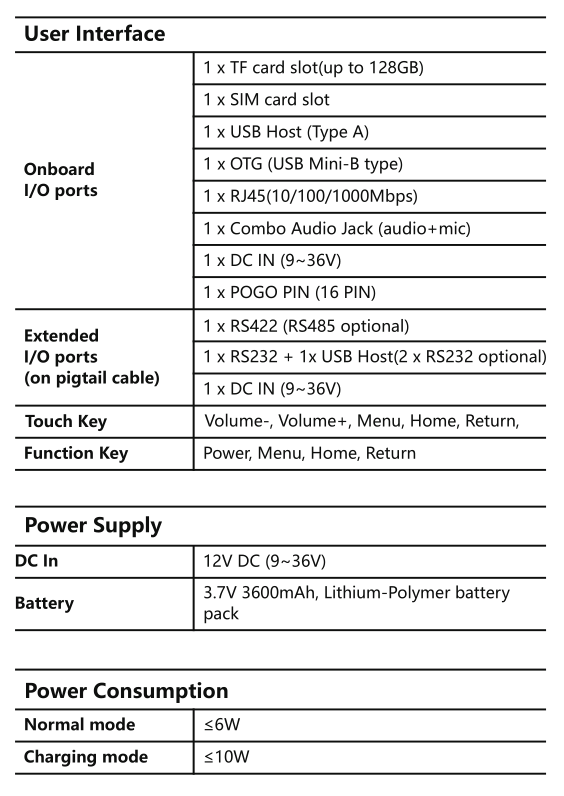

User InterfaceOnboard
I/O ports
1 x TF cardslot(up to 128GB)
1 x SIM cardslot
1 x USB Host (Type A)
1 x OTG (USB Mini-B type)
1 x RJ45(10/100/1000Mbps)
1 x Combo Audio Jack (audio+mic)
1 x DC IN (9~36V)
1 x POGO PIN (16 PIN)
I/O ports
(on pigtail cable)
1 x RS422 (RS485 optional)
1 x RS232 + 1x USB Host(2 x RS232 optional)
1 x DC IN (9~36V)
Touch KeyVolume-, Volume+, Menu, Home, Return,
Function KeyPower, Menu, Home, Return
Power SupplyDC In12V DC (9~36V)
Battery3.7V 3600mAh, Lithium-Polymer battery pack
Power ConsumptionNormal mode≤6W
Charging mode≤10W
EnvironmentOperating Temp-20°C~70°C (w/o battery)
-10°C~50°C (w/ battery)
Storage Temp-20°C~80°C
IP RatingIP65
Weight1.1kg (tablet only)
AccessoriesStandardAC/DC adaptor or car power adaptor(optional)
OptionalDocking, extended cable
