  • Hospital Patient Bedside Infotainment Terminal

HC11

● High-performance Rockchip 3288 quad-core processor
● 10.1-inch 1280×800 IPS LCD for the best viewing
● 10-point multi-touch capacitive touch screen control
● Android 7.1 operating system
● Handset for a service call, key membrane, and remote control
● Supports WLAN and Bluetooth 4.0
● Extendable USB host for RFID/Barcode reader; TV tuner dongle
● RJ45 interface for Ethernet LAN, supporting POE+
● Built-in front CMOS camera
● VESA mount 75x75mm

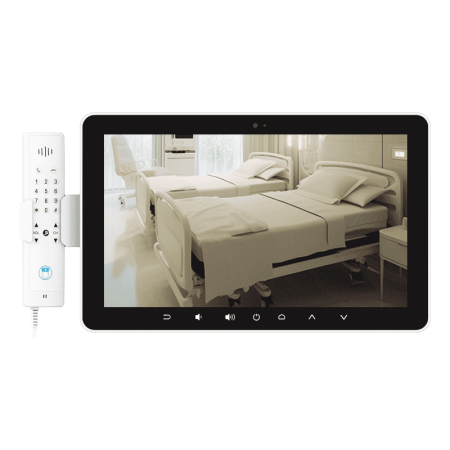

10.1”Smart Bedside Terminal
The use of hospital bedside smart terminals in the clinical environment has now become obvious for the hospital services and patients’entertainment and communication. These terminals help hospitals to reshape the ways being followed to manage workload of clinical operations and administrative needs and during patient care and for their satisfaction. Saintway HC11 RK3288 bedside computing terminal has been specifically designed for use in a hospital and clinical environment. It equips a 10.1″ IPS LCD screen with a 10-point touchscreen, Ethernet, Wi-Fi, Bluetooth, USB host, OTG, extended storage and a front camera. Besides these, HC11 have featured extended function like a TV tuner, RFID and Barcode reader with a USB dongle. Featuring antibacterial plastics, an easy-clean design, and a front screen that is IP65 rated, this bedside terminal fully complies with the latest hygiene and safety standards.

Amazing user experiences
HC11 equips with a 10.1″ LCD based on IPS technology which provides faster response time, wider viewing angles, outstanding color accuracy and screen consistency. It also features a 10-point capacitive touch screen which provides quickness, recognition of several touches and ease of use.

Supporting the best mobile OS – Android
Its android-based operating system makes it more valuable as it gives access to biggest growing market of technology and applications, innovations reach the market quicker, and it supports the latest cutting-edge ideas.

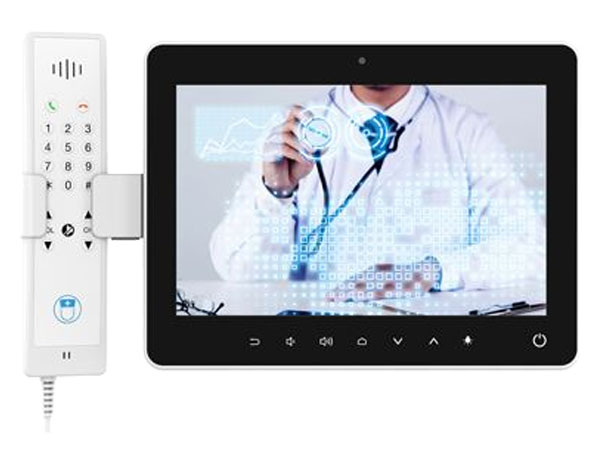

Handset for a service call, key membrane, and remote control
Patients can smoothly and conveniently access healthcare workers with the aid of our medical tablet terminal. This innovative device facilitates effortless telephone and video communication, providing an enhanced level of interaction and care.

Compatible with VESA mount
HC11 supports VESA mounting i.e. 75×75 mm. It can be located on the patient’s bed. The screen can be adjusted to provide the patient with easy positioning.

Highly flexible and versatile medical computing device
In addition to built-in a 2MP CMOS camera, HC11 is equipped with I/O ports which allow the device to connect multiple accessories. It includes a USB host, OTG, extended storage and RJ45 with power-over-Ethernet (PoE). Moreover, the IP65-rated flat front panel protects against water and dust ingress.

Transforming Patient Care with Our Medical Tablet Terminal
The HC11 smart bedside terminal revolutionizes patient care by providing seamless access to infotainment, communication with medical staff, family, and the world. With its simple and interactive interface, patients can enjoy entertainment, telephone, and internet services, enhancing their engagement and overall hospital experience.

Specifications

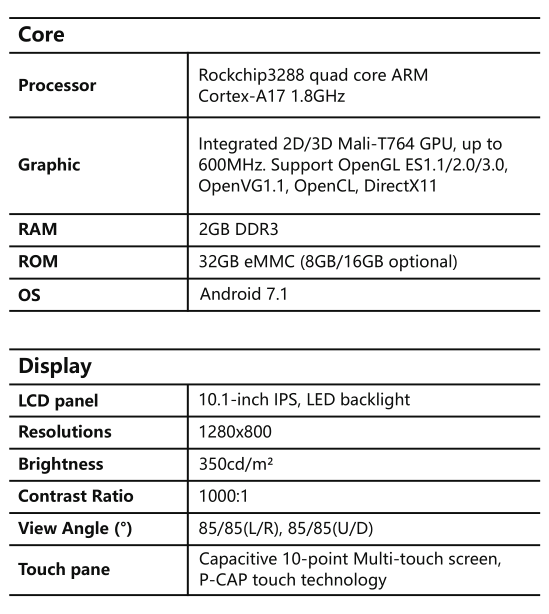

ModelHC11
CoreProcessorRockchip3288 quad core ARM Cortex-A171.8GHz
GraphicIntegrated 2D/3D Mali-T764 GPU,up to 600MHz.Support OpenGL ES1.1/2.0/3.0, OpenVG1.1,OpenCL,DirectX11
RAM2GB DDR3
ROM32GB eMMC(8GB/16GB optional)
OSAndroid 7.1
DisplayLCD panel10.1-inch IPS,LED backlight
Resolutions1280×800
Brightness350 cd/m²
Contrast Ratio1000:1
View Angle (°)85/85(L/R),85/85(U/D)
Touch panelCapacitive 10-point Multi-touch screen, P-CAP touch technology

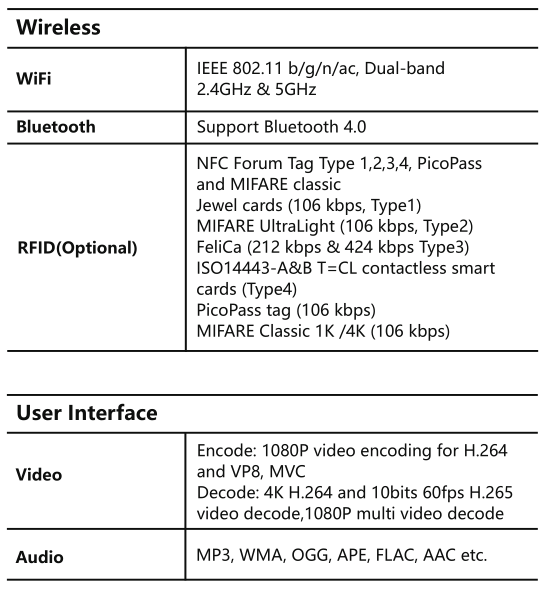

WirelessWiFiIEEE 802.11 b/g/n/ac,Dual-band 2.4GHz &5GHz
BluetoothSupport Bluetooth 4.0
RFID(Optional)NFC Forum Tag Type 1,2,3,4,PicoPass and MIFARE classic Jewel cards (106 kbps,Type1)
MIFARE UItraLight (106 kbps,Type2)
FeliCa (212 kbps &424 kbps Type3)
SO14443-A&B T=CL contactless smart cards  (Type4)
PicoPass tag (106 kbps)
MIFARE Classic 1K/4K (106 kbps)
MultimediaVideoEncode:1080P video encoding for H.264 and VP8,MVC
Decode:4K H.264 and 10bits 60fps H.265 video decode,1080P multi video decode
AudioMP3,WMA,OGG,APE,FLAC,AAC etc.

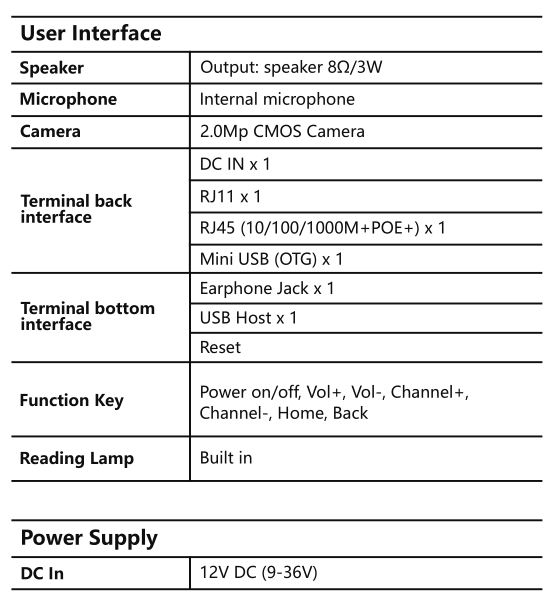

SpeakerOutput:speaker 8Ω/3W
MicrophoneInternal microphone
Camera2.0Mp CMOS Camera
User InterfaceTerminal back
interface
DC IN x 1
RJ11x 1
RJ45(10/100/1000M+POE+) x 1
Mini USB (OTG) x1
Terminal bottom
interface
Earphone Jack x 1
USB Host x 1
Reset
Function KeyPower on/off,Vol+,Vol-,Channel+,Channel-,Home,Back
Reading LampBuilt in

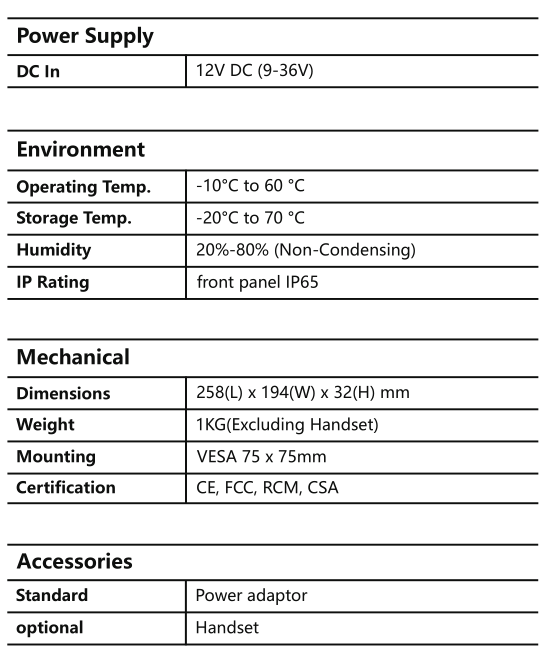

Power SupplyDC In12V DC(9~36V)
EnvironmentOperating Temp.-10℃ to +60℃
Storage Temp.-20℃ to +70℃
Humidity20%-80%(Non-Condensing)
IP RatingFront panel IP65
MechanicalDimensions258(L)x 194(W)x 32(H)mm
Weight1KG (Excluding Handset)
MountingVESA 75x 75mm
CertificationCE,FCC,RCM,CSA
AccessoriesStandardPower adaptor
OptionalHandset
