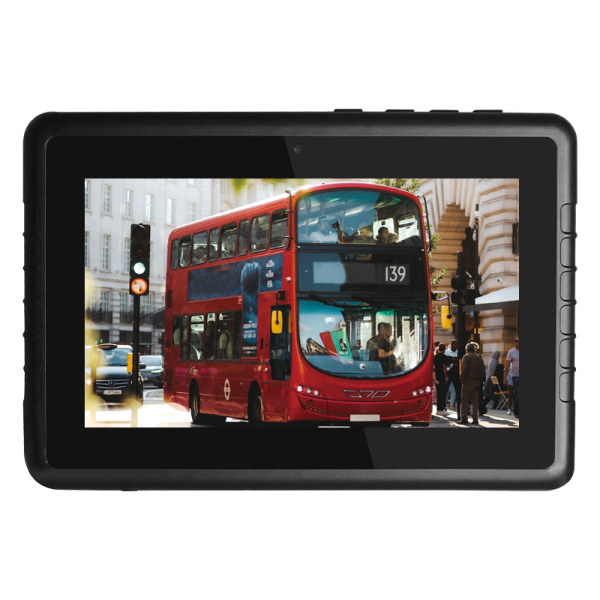

V7S

● Rugged enclosure design with IP65 rating
● Rockchip RK3568, 2.0GHz
● Android 11 operating system
● Integrated Mali-G52-2EE GPU, up to 800MHz
● Built-in 2.0MP CMOS front camera, built-in stereo speakers(2W,8Ω)
● Built-in 4G/3G cellular, WiFi, Bluetooth, GPS+GLONASS+BEIDOU (optional)
● Built-in and Extended I/O interfaces USB 3.0, TF(up to 128 GB), RJ45, 2x RS232, RS422/485, reverse gear trigger, CAN bus, AV In etc

Equipping the in-vehicle workforce with digitalization to keep in coordination with their team, could add up to an immense boost in productivity. Saintway recognizes the importance of connectivity to the workers of the vehicle industry. V7S Mobile Data Terminal of Saintway is the technological revolution in the vehicle industry. V7S is an Android-based 7-inch mobile data terminal that is powered by an RK3568 Quad-core Cortex-A55 processor. The newly designed enclosure provides a good ingress protection rating of IP65. With a sunshade hood, it can work in the cab during the daytime. V7S integrates a variety of communication modules such as Wi-Fi,

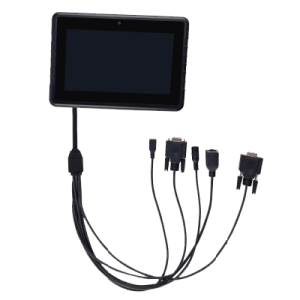

Bluetooth, 4G/3G cellular, and GPS. For more peripheral devices, it has a pigtail cable to meet various I/O ports, like CAN bus, RS232, RJ45, USB OTG, AV, etc.

Ultra-Durable LCD Protection

V7S has a 7-inch LCD screen with a capacitive multi-touch panel. That means no stress over the scratch, drop, or impact, with super-strong insurance construction. While the remainder of your gadget is effectively and completely secured by a strong metal, elastic, and plastic fenced-in area.

Provide Extreme Efficiency

V7S owns the Android 11 operating system that claims as the speaker of your languages. Through the newly added features of Android 11, V7S supports not only efficient performance, user-friendly UI, and APIs but also app shortcuts, split-screen multi-tasking, revamped notifications, and many other functions.

Multiple Connections for External Equipment

V7S also provides multiple connections for external equipment. It can be extended with USB, OTG, RS232 Ethernet, CAN bus, AV, etc. Through the extension of MDT with other peripherals, more industrial application scenarios can be covered.

Limitless Wireless Connectivity

Take the whole office with you, regardless of where you go in the field, with a complete remote network, including Wi-Fi or potentially bursting quick 4G LTE Connectivity, versatile for your selection of transporters at least.

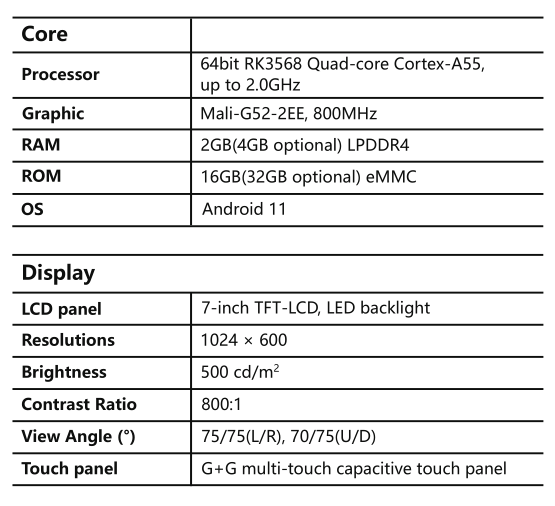

Specifications

ModelV7S
CoreProcessor64bit RK3568 Quad-core Cortex-A55, up to 2.0GHz
GraphicMali-G52-2EE, 800MHz
RAM2GB(4GB optional) LPDDR4
ROM16GB(32GB optional) eMMC
OSAndroid 11
DisplayLCD panel7-inch TFT-LCD, LED backlight
Resolutions1024 × 600
Brightness500 cd/m2
Contrast Ratio800:1
View Angle (°)75/75(L/R), 70/75(U/D)
Touch panelG+G multi-touch capacitive touch panel

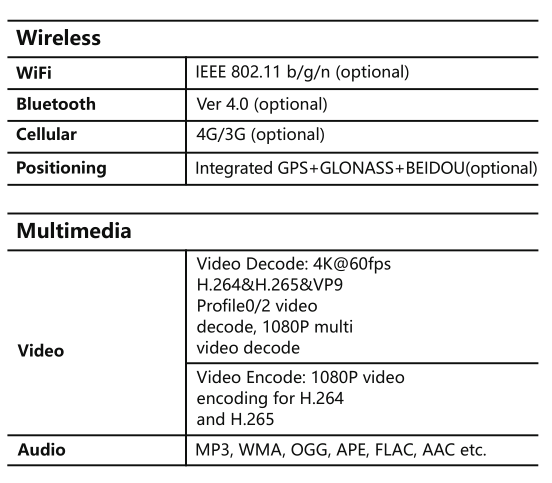

wirelessWiFiIEEE 802.11 b/g/n (optional)
BluetoothVer 4.0 (optional)
Cellular4G/3G (optional)
PositioningIntegrated GPS+GLONASS+BEIDOU(optional)
MultimediaVideoVideo Decode: 4K@60fps H.264&H.265&VP9 Profile0/2 video decode, 1080P multi-video decode
Video Encode:1080P video encoding for H.264 and H.265
AudioMP3, WMA, OGG, APE, FLAC, AAC etc.
MechanicalDimensions200(L)x136(W)x36(H) mm
Weight0.79kg
Mount75x75mm VESA or 38x30mm RAM compliant
CertificationCE/E-mark/RCM compliant

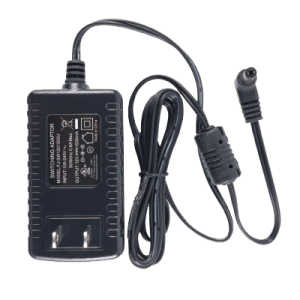

AccessoriesStandardAC/DC adaptor or car power adaptor(optional)

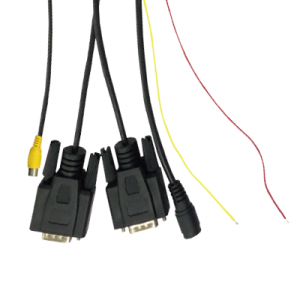

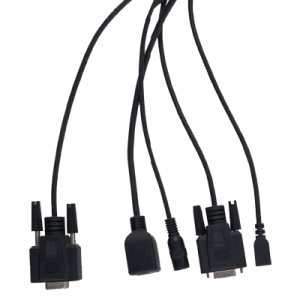

Extended cable
OptionalSunshade

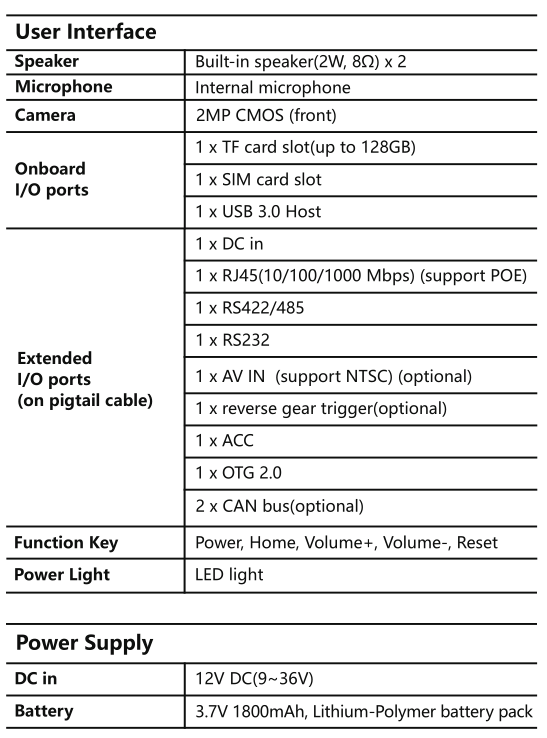

User InterfaceSpeakerBuilt-in speaker(2W, 8Ω) x 2
MicrophoneInternal microphone
Camera2MP CMOS (front)
Onboard
I/O ports
1 x TF cardslot(up to 128GB)
1 x SIM cardslot
1 x USB 3.0 Host
Extended
I/O ports
(on pigtail cable)
1 x DC in
1 x RJ45(10/100/1000 Mbps) (support POE)
1 x RS422 (RS485 optional)
1 x RS232
1 x AV IN  (support NTSC) (optional)
1 x reverse gear trigger(optional)
1 x ACC
1 x OTG 2.0
2 x CAN bus(optional)
Function KeyPower, Home, Volume+, Volume-, Reset
Power LightLED light
Power SupplyDC In12V DC (9~36V)
Battery3.7V 1800mAh, Lithium-Polymer battery pack
Power ConsumptionNormal mode≤6W
Charging mode≤10W
EnvironmentOperating Temp-20°C~70°C (w/o battery)
-10°C~50°C (w/ battery)
Storage Temp-20°C~80°C
IP RatingIP65
