  • X7R-Rough-ELD-Tablet-for-Trucks
  • X7R Waterproof Ruggedized Android Tablet
  • X7R Waterproof Ruggedized Android Tablet
  • X7R Waterproof Ruggedized Android Tablet
  • x7r-5
  • X7R Waterproof Ruggedized Android Tablet


● Rugged enclosure design with IP54 rating.
● Rockchip RK3368 ARM Cortex-A53 Octa-core processor,1.5GHz.
● Android 6.0 Marshmallow operating system.
● Integrated PowerVR G6110 GPU, Support OpenGL ES 1.1/2.0/3/1
● 7-inch 1024×600 LCD with multi-touch capacitive touchscreen.
● Built-in 4G/3G cellular, RJ45 Ethernet LAN(Gigabits optional), NFC
● Extended Cable I/O RS422(RS485 optional), RS232 , USB( 2 X RS232 optional),CAN Bus

X7R is a rugged IP54-grade mobile data terminal specifically designed for intelligent transportation like a Fleet Management System. Based on Rockchip RK3368 ARM Cortex- A9 octa-core processor, our X7R has a higher and more reliable performance in-vehicle applications. This device integrates a variety of wireless communication modules such as Wi-Fi, Bluetooth, 4G cellular, and GPS. The rugged enclosure provides more capabilities not only in a wide range of temperatures but also in harsh environments subject to shock and vibration. Its design also allows it to own a good ingress protection rating of IP54. The pigtail cable is designed for more extension data communications, such as RS232, RS422, RJ45, USB, CAN Bus, GPIOs, etc. The X7R works with the Android 6.0 Marshmallow operating system and we provide BSP support for it.

Improve Fleet Safety

While drivers get a full map all the way around and benefit from smart navigation, fleet safety can be also highly improved with driver monitoring and two-way communication provided with smart fleet and asset tracking systems.

Enhance Fleet Efficiency

Saintway in-vehicle tablets present the solution basement to streamline the workflow, either fleet and logistics tracking, vehicle dispatching, regular maintenance, or possible immediate response to faults and failures.

Extend Device Capabilities

High-performance processors and multiple interfaces and modules extend device capabilities. Customers’ software compatible, extended hardware(cameras, sensors, headphones, taxi meters, etc.) supported and easy mounting ensured.

Rugged Design

Water & dustproof design can meet the in-cab harshest environment. No matter whether in the hottest Middle East, or the coldest North Europe, X7R can still work smoothly to help drivers.

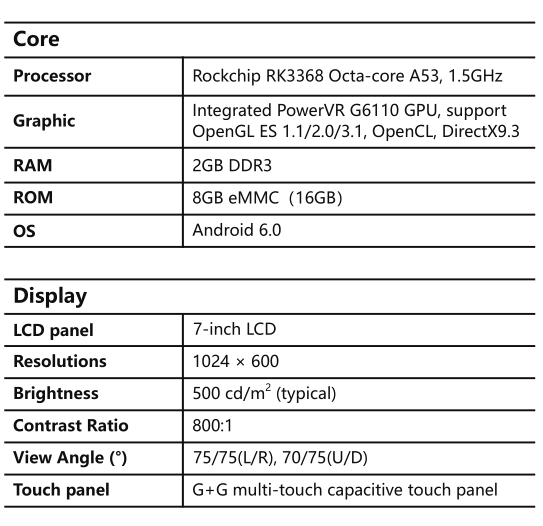

CoreProcessorRockchip RK3368 Octa-core A53, 1.5GHz
GraphicIntegrated PowerVR G6110 GPU, support OpenGL ES 1.1/2.0/3.1, OpenCL, DirectX9.3
OSAndroid 6.0
DisplayLCD panel7-inch LCD
Resolutions1024 × 600
Brightness500 cd/m2  (typical)
Contrast Ratio800:1
View Angle (°)75/75(L/R), 70/75(U/D)
Touch panelG+G multi-touch capacitive touch panel

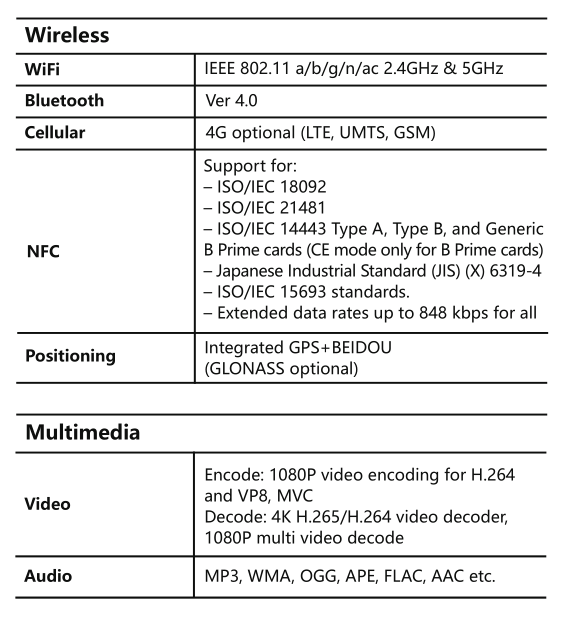

wirelessWiFiIEEE 802.11 a/b/g/n/ac 2.4GHz & 5GHz
BluetoothVer 4.0
Cellular4G optional (LTE, UMTS, GSM)
NFCSupport for:
 – ISO/IEC 18092
 – ISO/IEC 21481
 – ISO/IEC 14443 Type A, Type B, and Generic
B Prime cards (CE mode only for B Prime cards)
– Japanese Industrial Standard (JIS) (X) 6319-4
 – ISO/IEC 15693 standards.
 – Extended data rates up to 848 kbps for all
PositioningIntegrated GPS+GLONASS+BEIDOU (GLONASS optional)
MultimediaVideoEncode: 1080P video encoding for H.264 and VP8, MVC
Decode: 4K H.265/H.264 video decoder, 1080P multi video decode
AudioMP3, WMA, OGG, APE, FLAC, AAC etc.
AccessoriesStandardAC/DC adaptor or car power adaptor(optional)
Extended cable

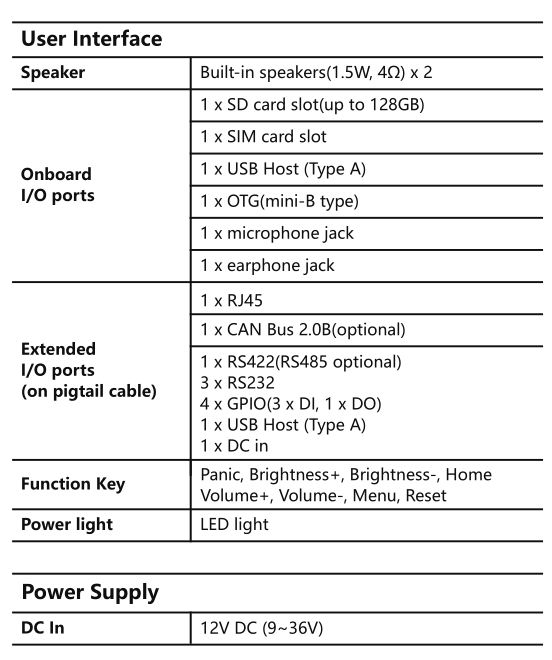

User InterfaceSpeakerBuilt-in speakers(1.5W, 4Ω) x 2
I/O ports
1 x SD cardslot(up to 128GB)
1 x SIM cardslot
1 x USB Host (Type A)
1 x OTG(mini-B type)
1 x microphone jack
1 x earphone jack
I/O ports
(on pigtail cable)
1 x RJ45
1 x CAN Bus 2.0B(optional)
1 x RS422(RS485 optional)
3 x RS232
4 x GPIO(3 x DI, 1 x DO)
1 x USB Host (Type A)
1 x DC in
Function KeyPanic, Brightness+, Brightness-, Home , Volume+, Volume-, Menu, Reset
Power LightLED light
Power SupplyDC In12V DC (9~36V)

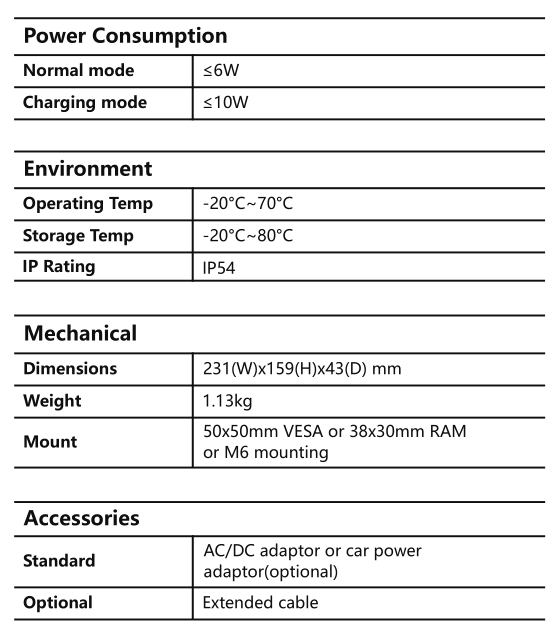

Power ConsumptionNormal mode≤6W
Charging mode≤10W
EnvironmentOperating Temp-20°C~70°C (w/o battery)
Storage Temp-20°C~80°C
IP RatingIP54
MechanicalDimensions231(W)x159(H)x43(D) mm
Mount50x50mm VESA or 38x30mm RAM or M6 mounting
