Product Overview

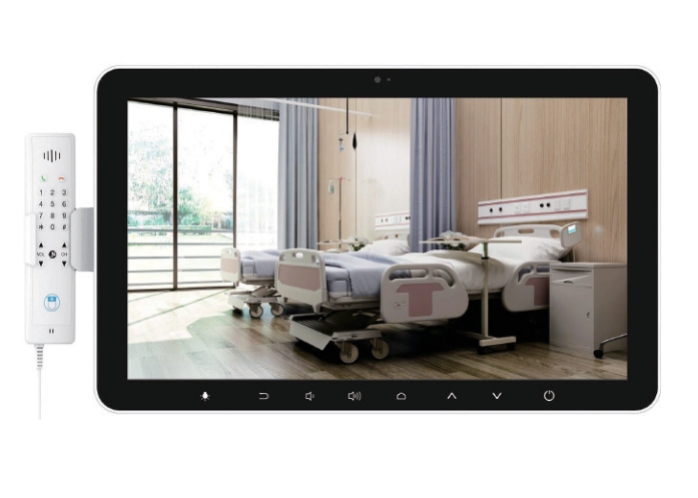

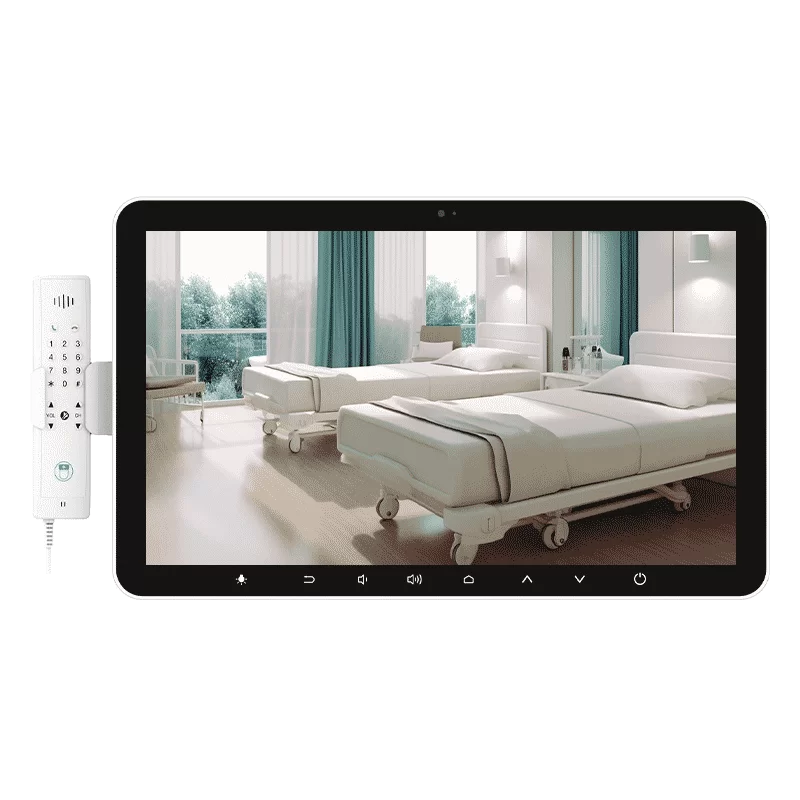

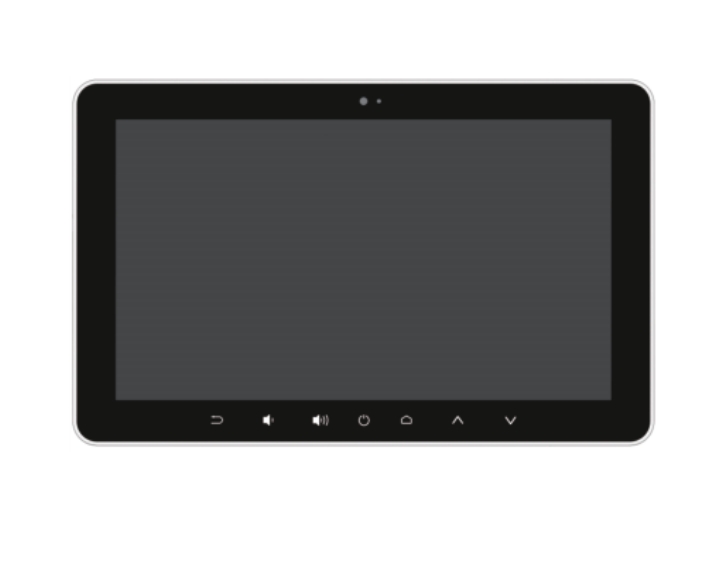

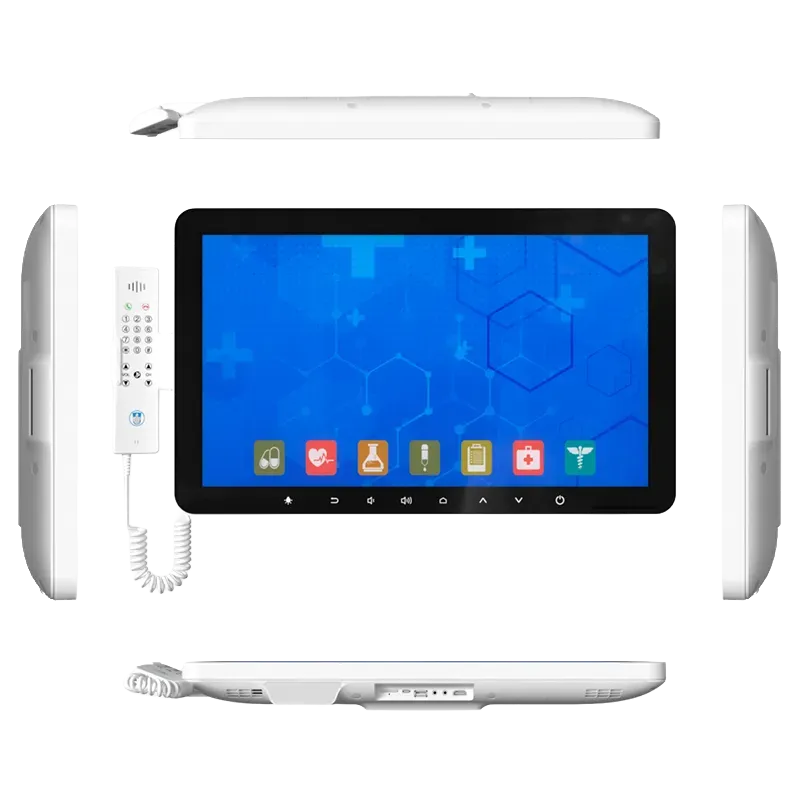

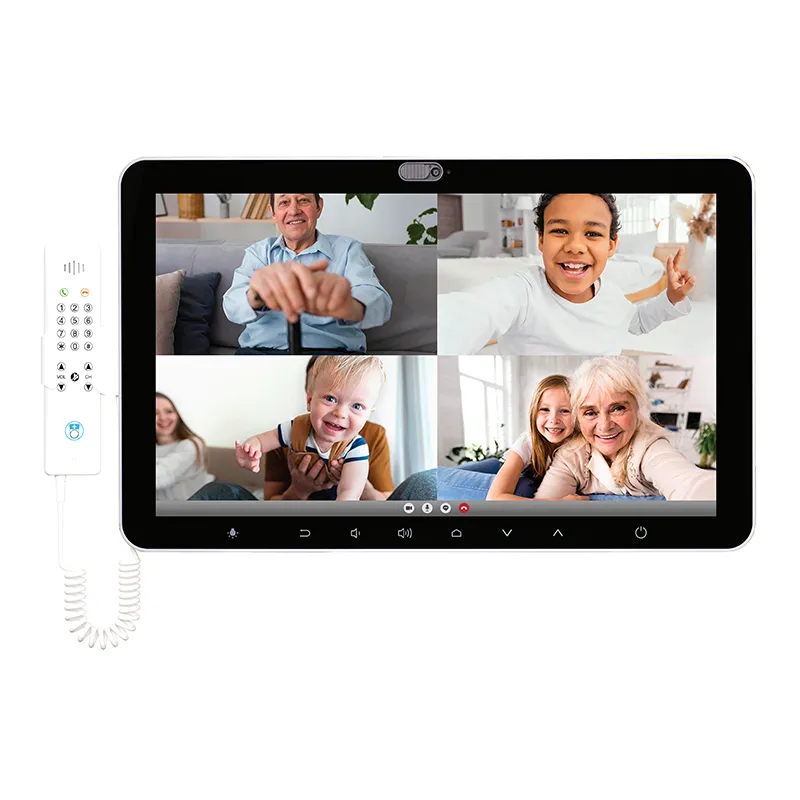

MT2199 – 21.5″ Smart Bedside Infotainment Terminal
The MT2199 offers a high-performance platform for patient infotainment and seamless hospital system integration. Its advanced hardware ensures smooth operation of multimedia, clinical communication, and patient engagement applications, enhancing both patient experience and hospital efficiency.
Designed for reliability, hygiene, and durability, the MT2199 supports infection control protocols and integrates easily with EMR systems, nurse call solutions, and other hospital IT infrastructure. Compact and future-ready, it is ideal for patient rooms, ICU units, and telehealth applications, bridging the gap between patient care, entertainment, and clinical workflow.
Smart Bedside Infotainment, Built for Healthcare
Empowering patient engagement with a powerful, hygienic, and fanless Full HD multi-touch bedside terminal. Featuring Android 12, antibacterial design, and seamless connectivity—Wi-Fi, Bluetooth, 4G/5G, plus built-in interfaces (RJ45, USB, NFC, Nurse Call) with optional camera and barcode support for complete healthcare software integration.
Applications

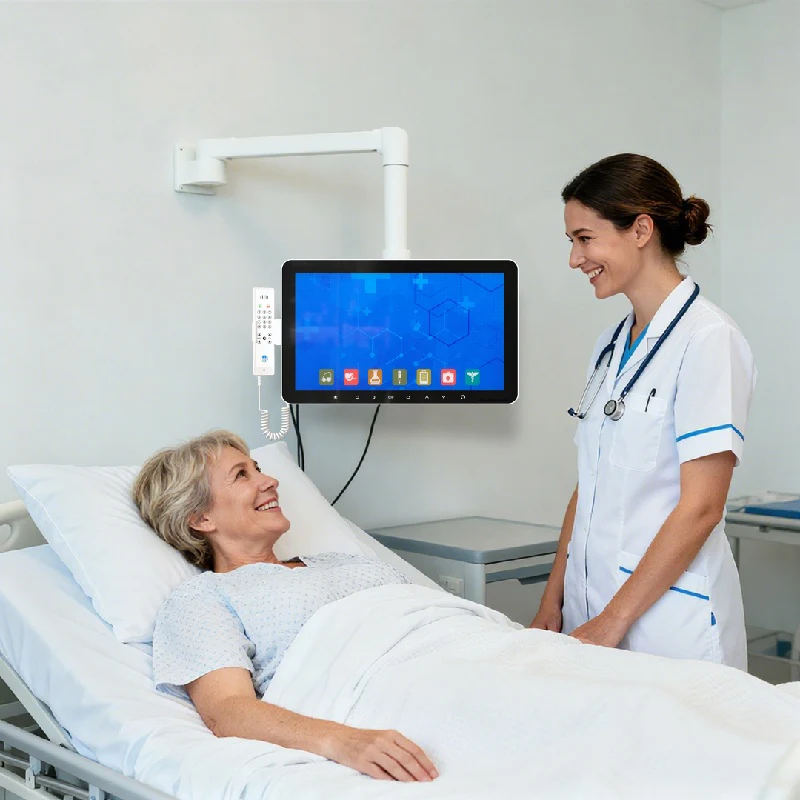

● Patient Engagement
Access to care plans, health education, entertainment, and service requests directly at the bedside.
● Clinical Support
Optional RFID and barcode scanning for accurate patient identification and safer workflows.
● Telehealth Ready
Integrated camera and microphone for video consultations and remote monitoring.
● Flexible Integration
Designed for hospital software vendors and system integrators to build customized bedside solutions.
Technical Specifications
| Model | MT2199 | |
| Core | Processor | Rockchip RK3399 (Dual-Core A72 + Quad-Core A53) |
| GPU | Mali-T860MP4, 600MHz, support OpenGL ES1.1/2.0/3.0/3.1 | |
| RAM | 4GB LPDDR4 | |
| ROM | 64GB eMMC (expandable 32GB–128GB) | |
| OS | Android 12 | |
| Display | LCD panel | 21.5-inch IPS, LED backlight |
| Resolutions | 1920 × 1080 | |
| Brightness | 500 nits | |
| Contrast Ratio | 1000:1 | |
| View Angle (°) | 85/85(L/R), 85/85(U/D) | |
| Touch panel | Capacitive 10-point multi-touch screen P-CAP touch technology | |
| Connectivity | WiFi | IEEE 802.11 a/b/g/n/ac Supports 2.4GHz & 5GHz |
| Bluetooth | Support Bluetooth 5.0 BLE | |
| Cellular | 5G module (Optional) | |
| RFID | Optional | |
| Multimedia | Video | 4K H.264 and 10bits 60fps H.265 video decode,1080P multi video decode VID/PX/H.264(AVI, MKV, MOV, TS, ML2TS, FLV, 3GP, MPEG OAT, MP4) |
| Audio | MP3, WMA, OGG, APE, FLAC, AAC etc. | |
| Speaker | 8Ω/3W x 2 | |
| Microphone | Internal microphone | |
| Camera | 13MP CMOS Camera | |

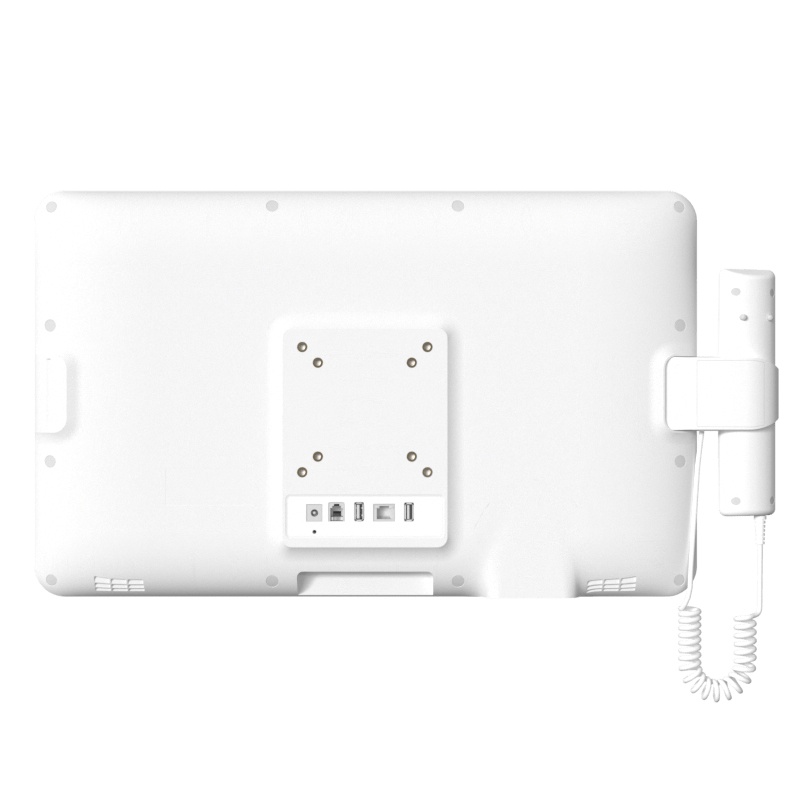

| Interfaces | Back Interface | 1 x DC IN; 2 x USB 2.0; 1 x RJ11; 1 x RJ45 (10/100/1000M+POE+) (Optional UPOE) |

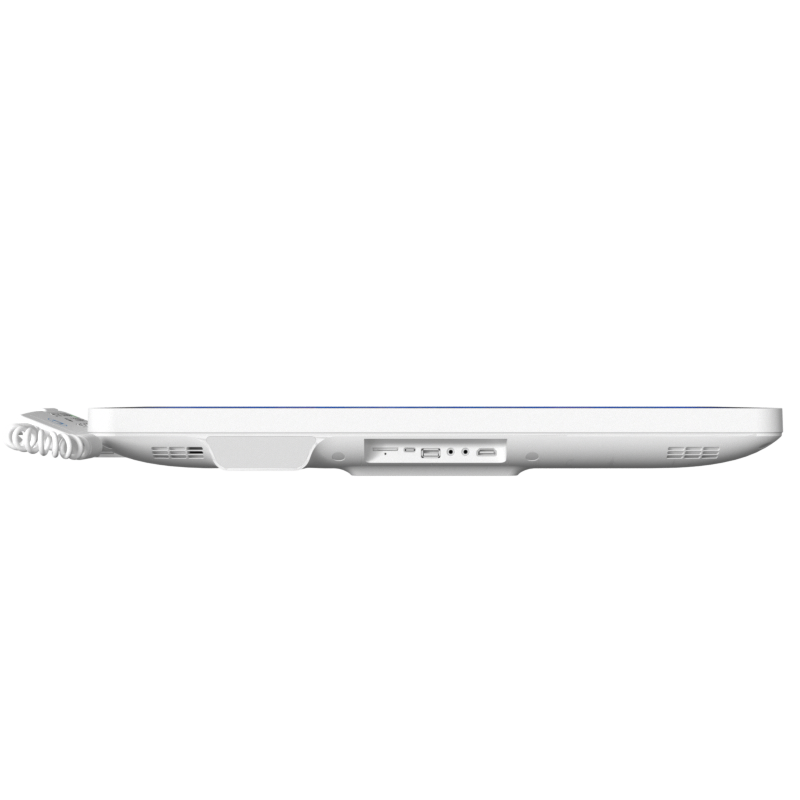

| Bottom Interface | 1 x Type-C; 1 x SIM; 1 x USB 3.0; 1 x HDMI IN; 2 x Headphone (COMBINATION MlC); Reset | |
| Handset | Full-function handset with remote control option | |
| Function Key | Power, Vol+, Vol-, Channel+, Channel-,Home, Return | |
| Reading Lamp | Built-in | |
| Other Functions | G-sensor | Built-in |
| RTC Battery | CR2032 | |
| Hard disk | Support SSD hard disk (Optional) | |
| Digital TV | Support ATSC, DVB-T2, ISDB-T (Optional) | |
| Power Supply | DC In | 12V DC |
| Environment | Operating Temp | -10°C~60°C |
| Storage Temp | -20°C to +80°C | |
| Humidity | 20%-80% (Non-Condensing) | |
| IP Rating | IP65 front panel | |

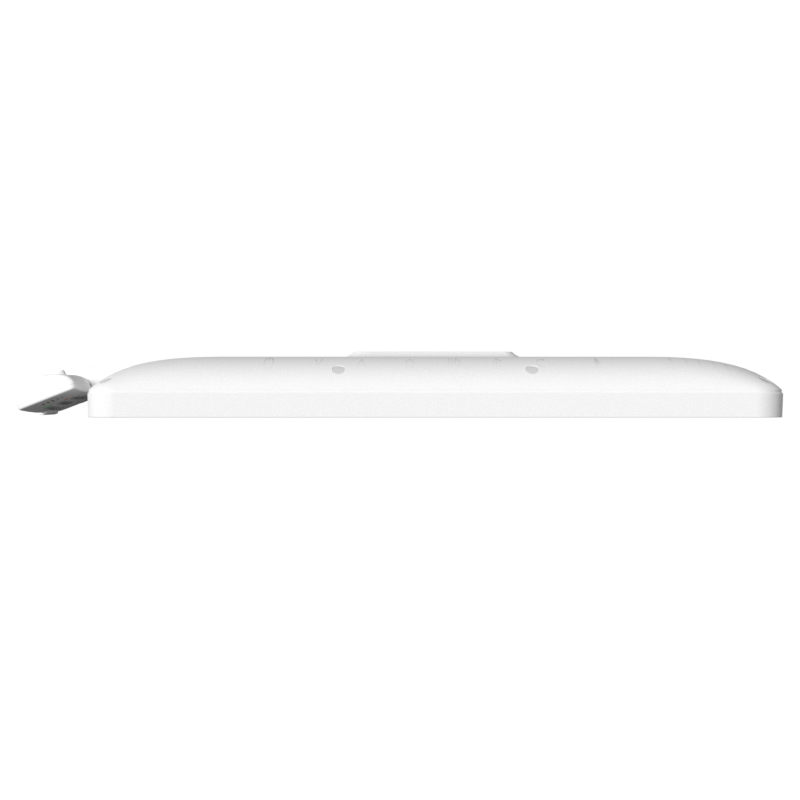

| Mechanical | Dimensions | 540(L) x 330(W) x 48(H) mm |
| Net Weight | 4.8KG | |
| Mount | VESA mount (75×75 / 100×100 mm) | |
Why Choose MT2199?
FAQ
Q1. Is the MT2199 classified as a medical device?
No. The MT2199 is a bedside infotainment terminal designed for patient engagement and hospital integration. It is not a medical device and does not require medical certification.
Q2. Can the MT2199 run third-party hospital software?
Yes. With Android 12 and an open platform, the MT2199 supports hospital apps, EMR/EHR access, and third-party integrations via APIs.
Q3. How is the device installed at the bedside?

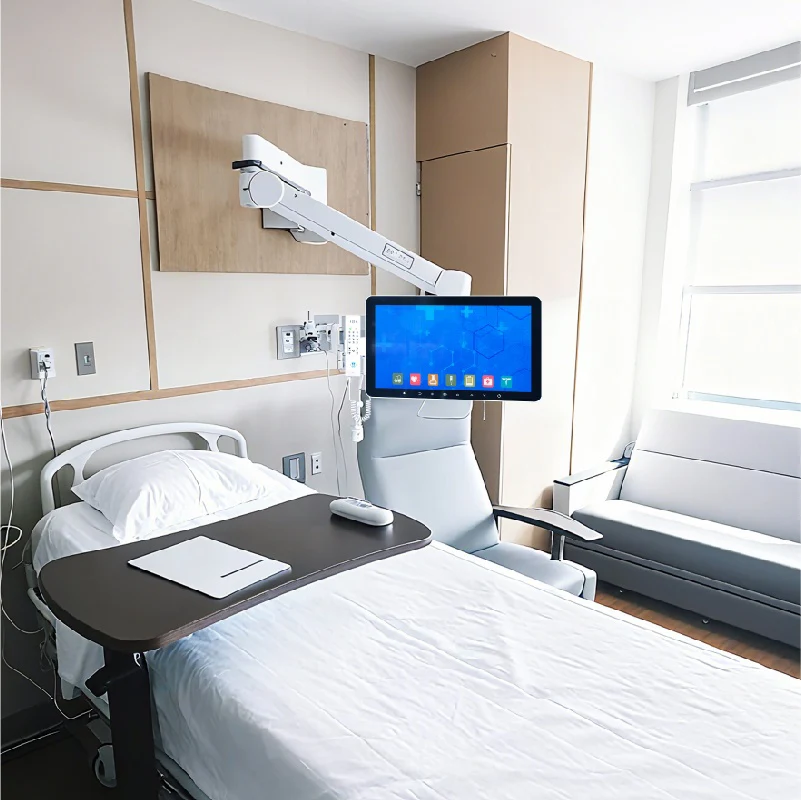

The MT2199 supports PoE+ for simplified power and data cabling and comes with VESA mounting options for flexible installation on arms or walls.
Q4. What connectivity options are available?
It includes Wi-Fi, Bluetooth 5.0, Ethernet (RJ45 with PoE+), and optional 4G/5G modules to meet different hospital network requirements.
Q5. Does the MT2199 include patient data storage?
No. The terminal acts as an access point to hospital systems. All sensitive patient data remains within the hospital’s secure servers.
