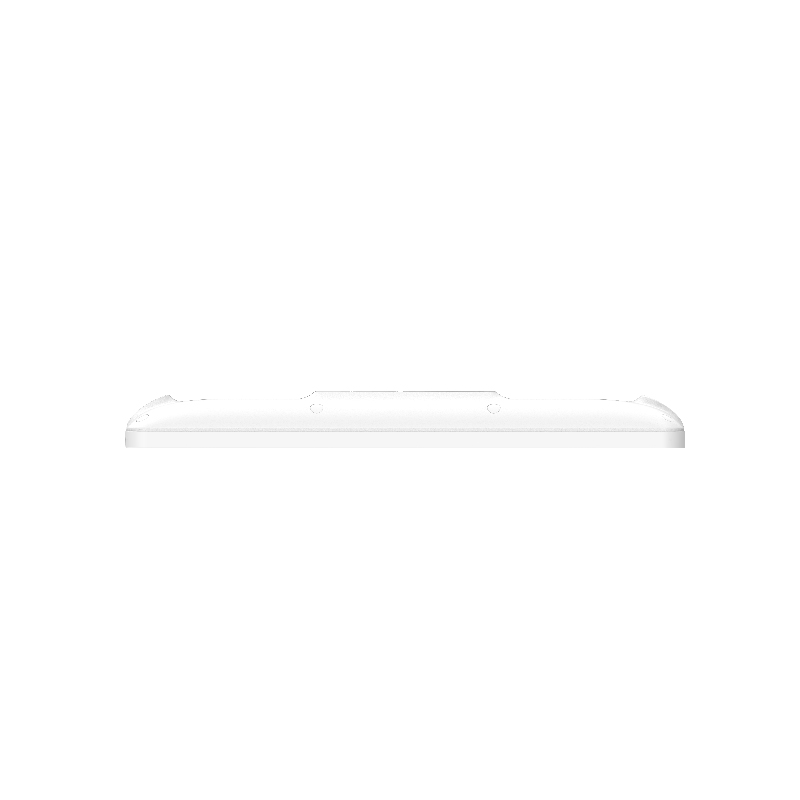

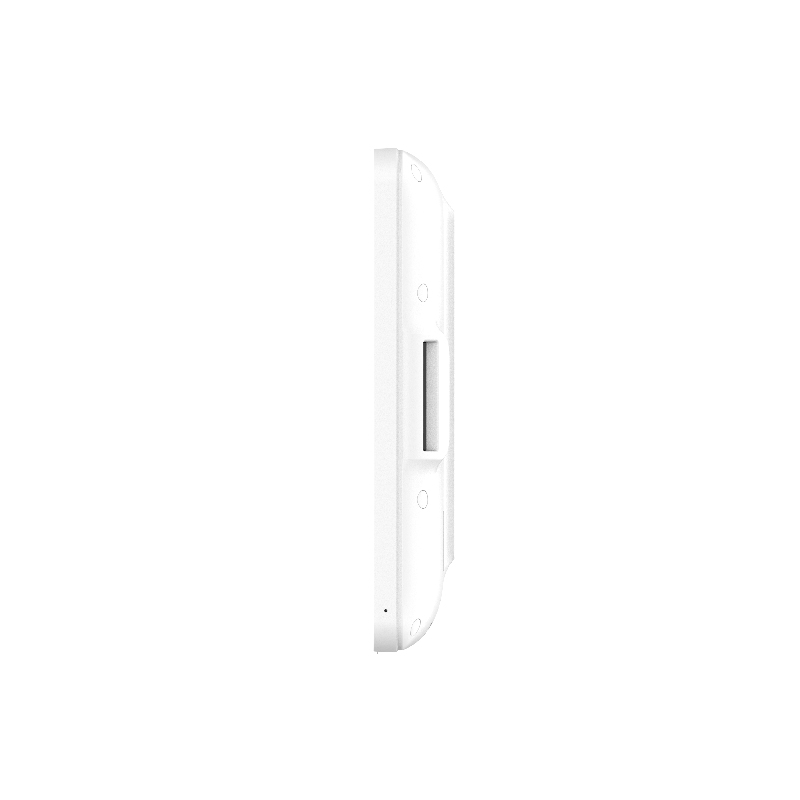

saintwaytech mt1566
  • saintwaytech mt1566
  • mt1566-bedside infotainment terminal-2
  • mt1566-bedside infotainment terminal-3
  • mt1566-bedside infotainment terminal-4

MT1566

● Bedside Self-Service – 15.6″ Full HD touchscreen for entertainment, education, and service requests.
● Nurse Workflow Support – Reduces routine calls and improves daily care efficiency.
● Telehealth Ready – Built-in camera and microphone for video consultations and virtual care.
● Integration-Ready Platform – Built on Android 12, supporting Ethernet (PoE), USB 2.0/3.0, HDMI input, RFID/NFC, nurse call integration, and optional cellular connectivity, enabling seamless integration with hospital systems.
● Designed for Healthcare Use – Fanless, antibacterial housing for quiet and hygienic operation.

Tags: ,

Get a Quote   Download PDF

Product Overview

MT1566 Smart Bedside Infotainment Terminal

The MT1566 is a 15.6-inch bedside infotainment terminal purpose-built for everyday use in hospitals and long-term care facilities. Powered by the Rockchip RK3399 processor, it delivers stable performance for patient-facing applications and clinical system integration.

With an intuitive multi-touch display, built-in camera and microphone, and Android-based open architecture, MT1566 serves as a reliable hardware platform for healthcare software vendors and system integrators to deploy customized bedside solutions.

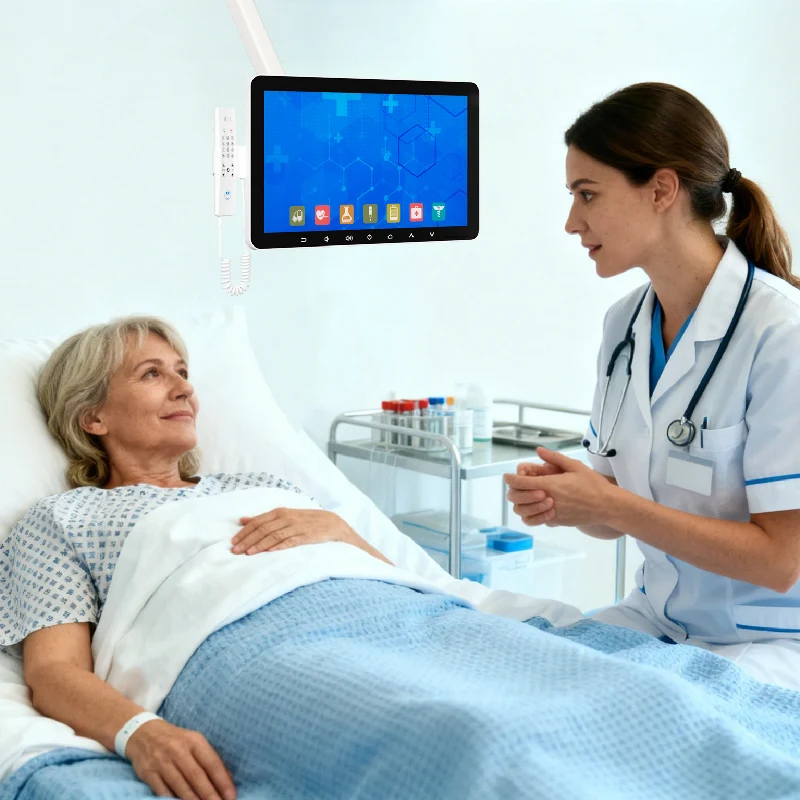

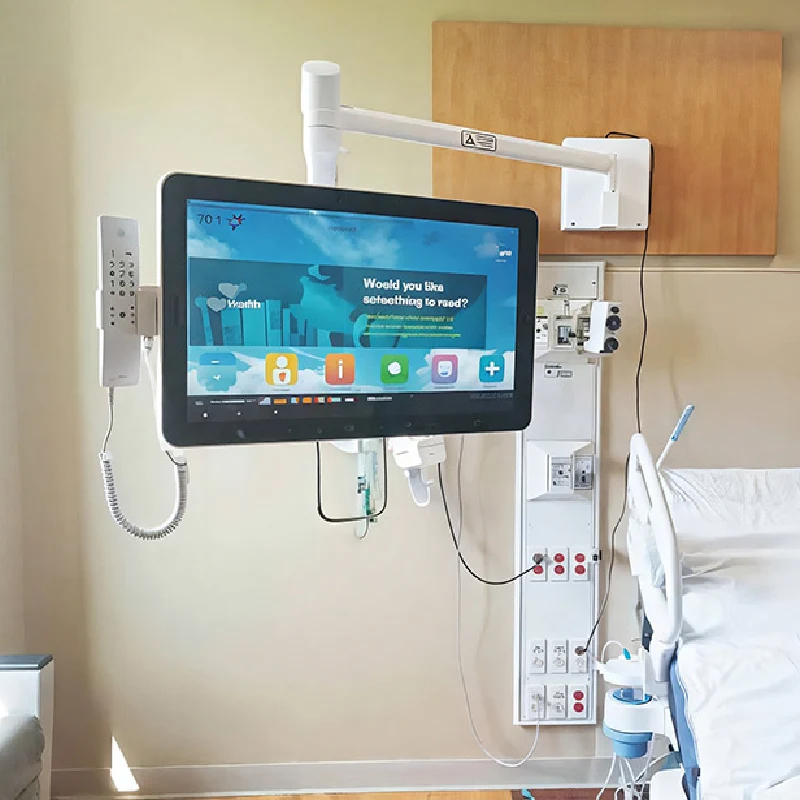

MT1566 smart bedside terminal for hospital and care facilities

Why MT1566 Matters

Simple Patient Engagement Patients and residents can access entertainment, health education, and digital service requests directly at the bedside — improving comfort and reducing anxiety during care.

Support Daily Nursing Workflows By enabling bedside self-service and digital interaction, MT1566 helps reduce non-clinical interruptions, allowing nurses and caregivers to focus on essential care tasks.

Telehealth & Virtual Interaction With a built-in camera and microphone, MT1566 supports video consultations, remote follow-ups, and family video calls — without the need for external peripherals.

Built for System Integration Running Android 12 on the RK3399 platform, MT1566 supports Wi-Fi, Bluetooth, Ethernet with PoE, and a wide range of interfaces, making it easy to integrate with HIS/EMR systems and third-party healthcare applications.
Optional 5G connectivity is available for deployments requiring mobile network access.

Smart Bedside Infotainment, Built for Healthcare

The MT1566 is a 15.6-inch bedside infotainment terminal with Full-HD touch, Android 12, and versatile connectivity including Wi-Fi, BT, 5G, PoE, and built-in interfaces. Designed with an antibacterial, fanless housing and camera & optional RFID, it provides a reliable, hygienic, and integration-ready platform for modern healthcare environments. The MT1566 is a 15.6-inch bedside infotainment terminal with Full-HD touch, Android 12, and versatile connectivity including Wi-Fi, BT, 5G, PoE, and built-in interfaces. Designed with an antibacterial, fanless housing and camera & optional RFID, it provides a reliable, hygienic, and integration-ready platform for modern healthcare environments.

MT1566 Bedside Infotainment Terminal

Applications — Real Use Cases

● Patient & Resident Engagement
Entertainment, education, and bedside self-service.

● Nurse & Care Team Support
Reduced routine calls and improved communication.

● Telehealth & Remote Care
Video consultations enabled by integrated camera and microphone.

● Flexible Deployment
Suitable for hospital wards, nursing homes, and long-term care facilities.

Applications — Real Use Cases

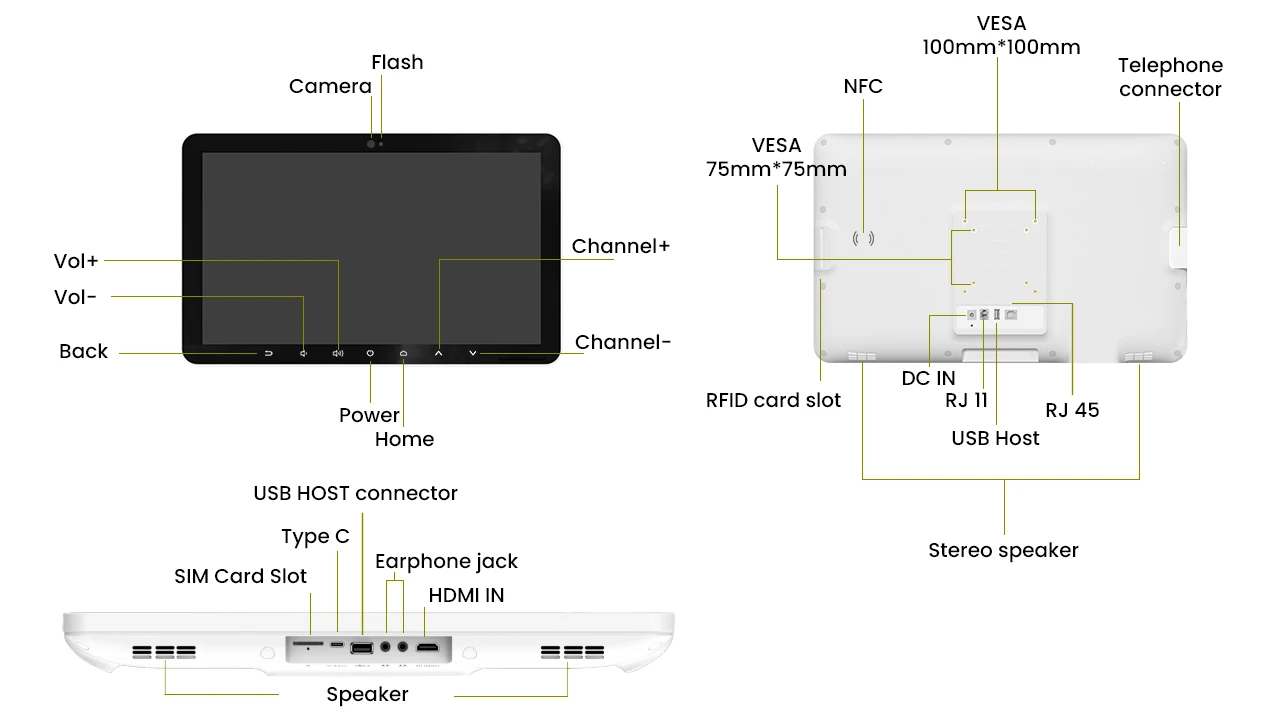

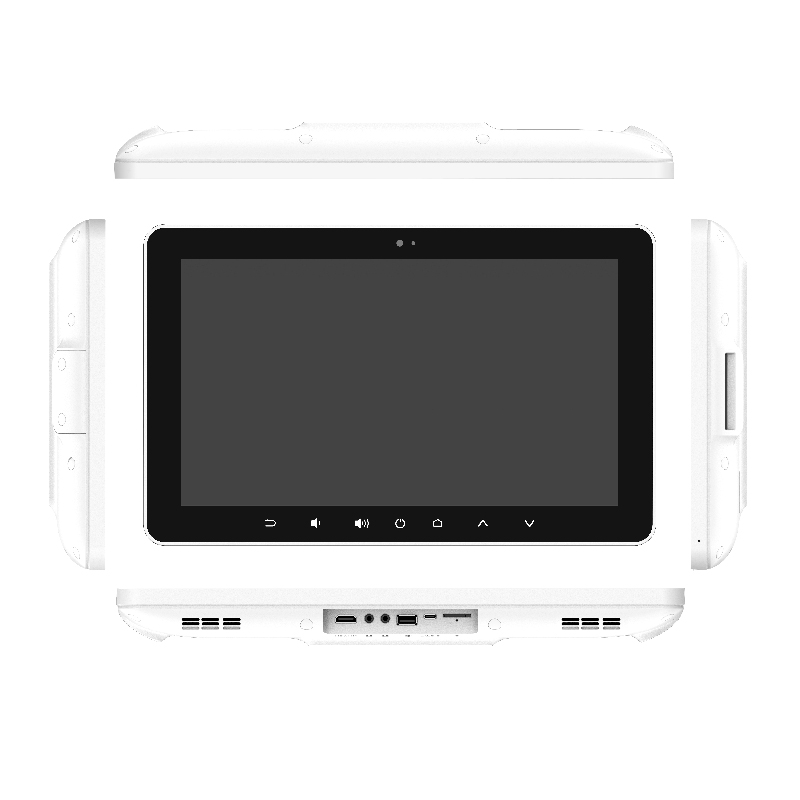

INTERFACE

MT1566_Button_diagram

Technical Specifications
Model MT1566
Core Processor Rockchip RK3399 (Dual-Core A72 + Quad-Core A53)
GPU Mali-T860, support OpenGL ES1.1/2.0/3.0/3.1, OpenVG1.1, OpenCL, DX11
RAM 4GB LPDDR4
ROM 64GB eMMC (32GB,128GB optional)
OS Android 12
Display LCD panel 15.6-inch IPS, LED backlight
Resolutions 1920 × 1080
Brightness 300 nits
Contrast Ratio 1000:1
View Angle (°) 85/85(L/R), 85/85(U/D)
Touch panel Capacitive 10-point multi-touch screen P-CAP touch technology
Connectivity WiFi IEEE 802.11 a/b/g/n/ac Supports 2.4GHz & 5GHz
Bluetooth Support Bluetooth 5.0 BLE
Cellular 5G module (Optional)
RFID Optional
Multimedia Video 4K H.264 and 10bits 60fps H.265 video decode, 1080P multi video decode VID/PX/H.264 (AVI, MKV, MOV, TS, ML2TS, FLV, 3GP, MPEG OAT, MP4)
Audio MP3, WMA, OGG, APE, FLAC, AAC, AMR-NB/-WB etc.
Speaker 8Ω/3W x 2
Microphone Internal microphone
Camera 13MP CMOS Camera

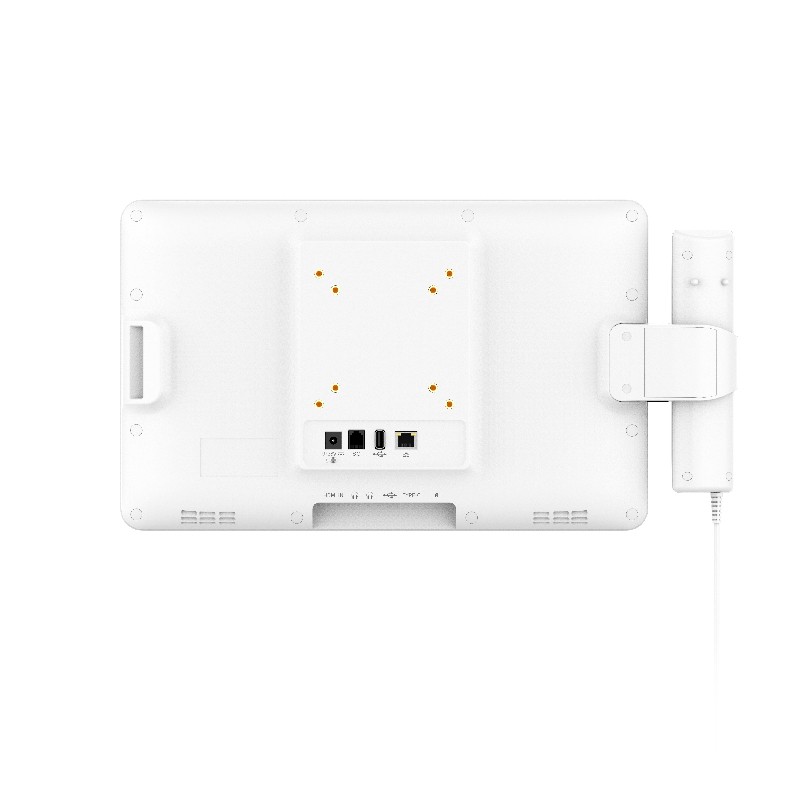

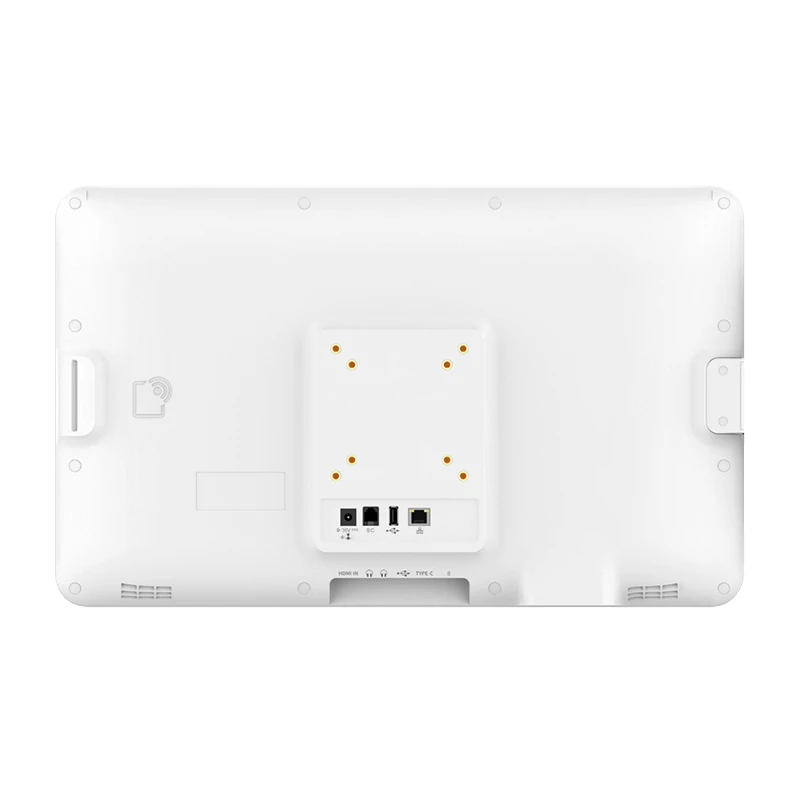

Interfaces Back Interface 1 x DC IN; 1 x USB 2.0; 1 x RJ11; 1 x RJ45 (10/100/1000M + POE+)

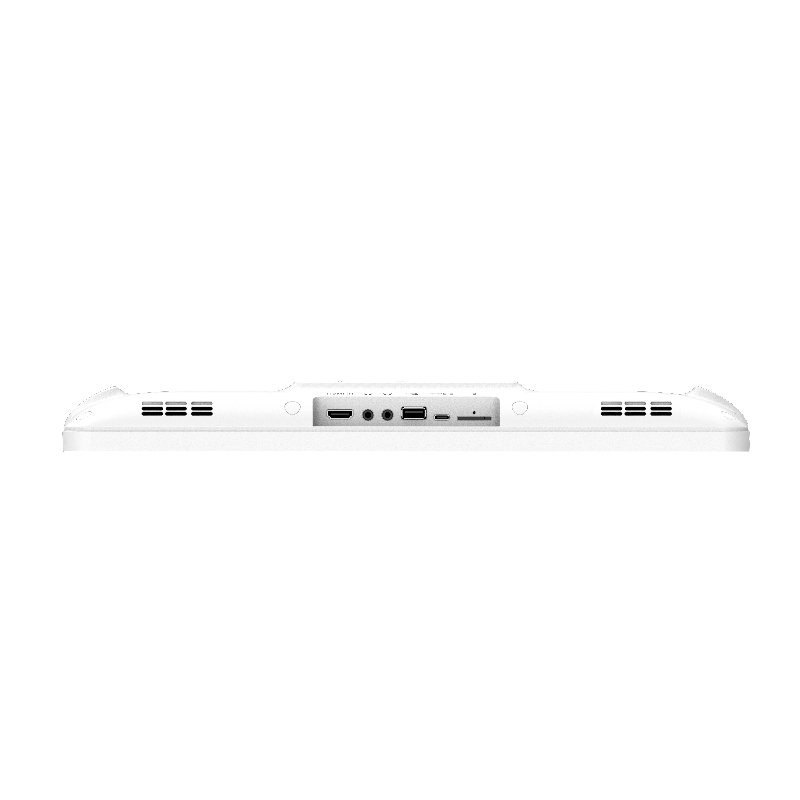

Bottom Interface 1 x Type-C; 1 x SIM; 1 x USB 3.0 (male); 1 x HDMI IN; 2 x Earphone Jack; Reset

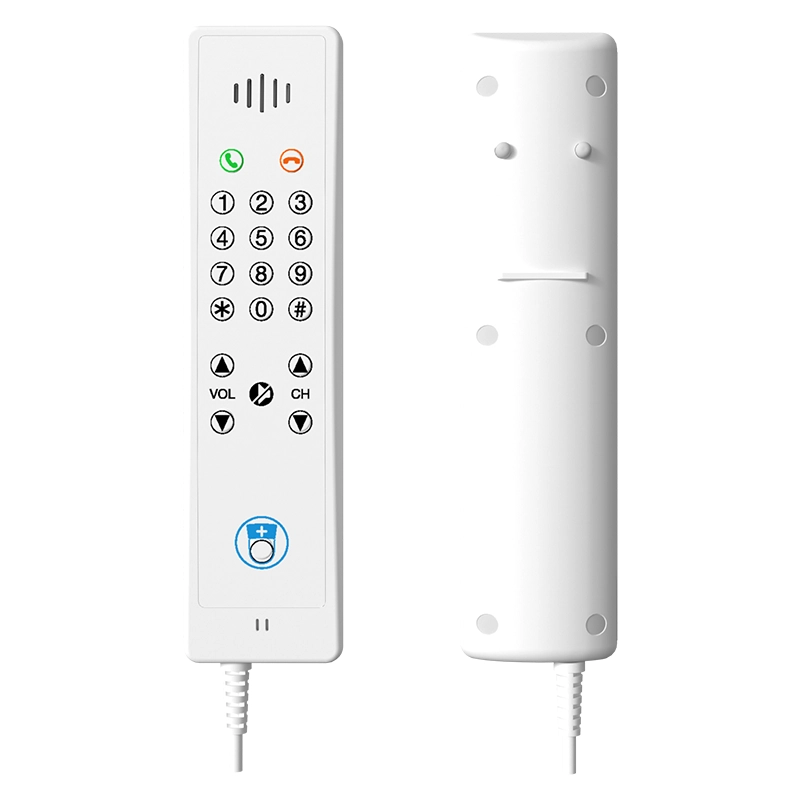

Handset Full-function handset with remote control option
Function Key Power, Vol+, Vol-, Channel+, Channel-, Home, Return
Other Functions G-sensor Built-in
RTC Battery CR2032
Hard disk Support SSD hard disk (Optional)
Digital TV Support ATSC, DVB-T2, ISDB-T (Optional)
Power Supply DC In 12V DC
Environment Operating Temp -10°C ～ 60°C
Storage Temp -20°C to +70°C
Humidity 20%-80% (Non-Condensing)
IP Rating IP65 front panel
Mechanical Dimensions 405(L) x 254(W) x 41(H) mm
Net Weight 1.98KG (Excluding Handset)
Mount VESA mount (75×75 / 100×100 mm)

Why Choose MT1566?

  • ● Compact and cost-efficient bedside hardware platform
  • ● Built-in telehealth capability (camera & mic)
  • ● Android-based open architecture for easy integration
  • ● Designed for continuous healthcare operation
  • ● Ideal for large-scale deployment in wards and care facilities

FAQ

Q1. Is the MT1566 classified as a medical device? No. MT1566 is a bedside infotainment terminal and is not classified as a medical device.

Q2. Does MT1566 support telehealth? Yes. MT1566 features a built-in camera and microphone, supporting video consultations and virtual care.

Q3. How is the MT1566 installed at the bedside? The MT1566 supports PoE+ for simplified cabling and offers VESA mounting options, making it easy to install on bedside arms or walls.

Q4. What connectivity options are available? It supports Wi-Fi, Bluetooth 5.0, Ethernet (RJ45 with PoE+), and optional 5G module for flexible networking.

Q5. Does the MT1566 store patient data? No. The terminal is a hardware interface. All sensitive patient data remains securely within the hospital’s own servers.
